LM5165XQDRCRQ1 device is a compact, easy-to-use,3-V to 65-V, ultra-low IQ synchronous buck converter with high efficiency over wide input voltage and load current ranges. With integrated high-side and low-side power MOSFETs, up to 150-mA of output current can be delivered at fixed output voltages of 3.3 V or 5 V or at an adjustable output.

Features

Wide input voltage range of 3 V to 65 V

10.5-µA no-load quiescent current

–40°C to 150°C junction temperature range

Fixed (3.3 V and 5 V) or adjustable output voltages

Meets EN55022 / CISPR 22 EMI standards

Integrated 2-Ω PMOS buck switch

Supports 100% duty cycle for low dropout

Integrated 1-Ω NMOS synchronous rectifier

Eliminates external rectifier diode

Programmable current limit setpoint (four levels)

Selectable PFM or COT mode operation

1.223-V ±1% internal voltage reference

900-µs internal or programmable soft start

Active slew rate control for low EMI

Monotonic start-up into prebiased output

No loop compensation or bootstrap components

Precision enable and input UVLO with hysteresis

Thermal shutdown protection with hysteresis

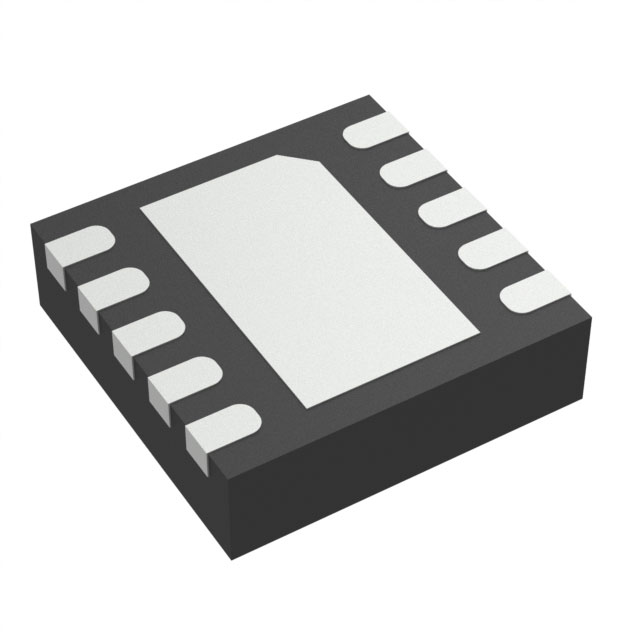

10-pin VSON and VSSOP packages

Applications

Automotive and battery-powered equipment

High-voltage LDO replacement

General-purpose bias supplies
