The TPS55288QWRPMRQ1 is a synchronous four-switch step-down converter capable of regulating the output voltage to a voltage.The TPS55288QWRPMRQ1 operates over a wide input voltage range of 2.7 V to 36 V and is capable of outputting 0.8 V. The TPS55288QWRPMRQ1 is designed to operate over a wide input voltage range of 2.7 V to 36 V and is capable of outputting 0.8 V to support a variety of applications. The TPS55288QWRPMRQ1 operates over a wide input voltage range of 2.7 V to 36 V and can output 0.8 V to support a variety of applications.The TPS55288QWRPMRQ1 integrates two 16-A MOSFETs to balance the size and efficiency of the solution. With programmable output voltage and output current limits via the I2C interface, the TPS55288QWRPMRQ1 is fully compliant with the USBPD specification.The TPS55288-Q1 is capable of delivering 100 W of power at a 12 V input voltage.The TPS55288QWRPMRQ1 is capable of delivering 100 W of power at a 12 V input voltage. The TPS55288QWRPMRQ1 uses an average current mode control scheme. The switching frequency is programmable from 200 kHz to 2.2 MHz with an external resistor and can be controlled synchronously.

Product Attributes

Function: Boost/Buck

Output Configuration: Positive

Topology: Buck-Boost

Output Type: Adjustable (programmable)

Number of Outputs: 1

Voltage - Input (Min): 2.7V

Voltage - Input (Max): 36V

Voltage - Output (Min/Fixed): 0.8V

Voltage - Output (Max): 22V

Current - Output: 6.35A (Switched)

Frequency - Switching: 200kHz ~ 2.2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

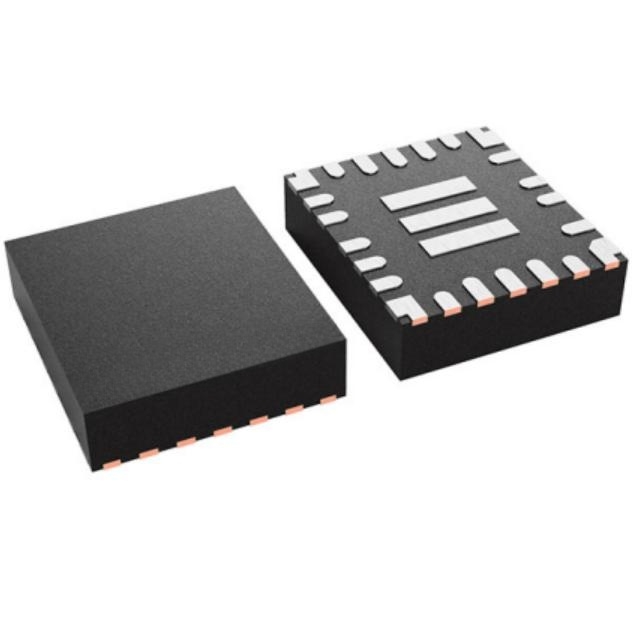

Package/Housing: 26-VFQFN Exposed Pad

Supplier Device Package: 26-VQFN-HR (4x3.5)

Applications

● USB PD

● Automotive infotainment systems and clusters

● Car chargers
