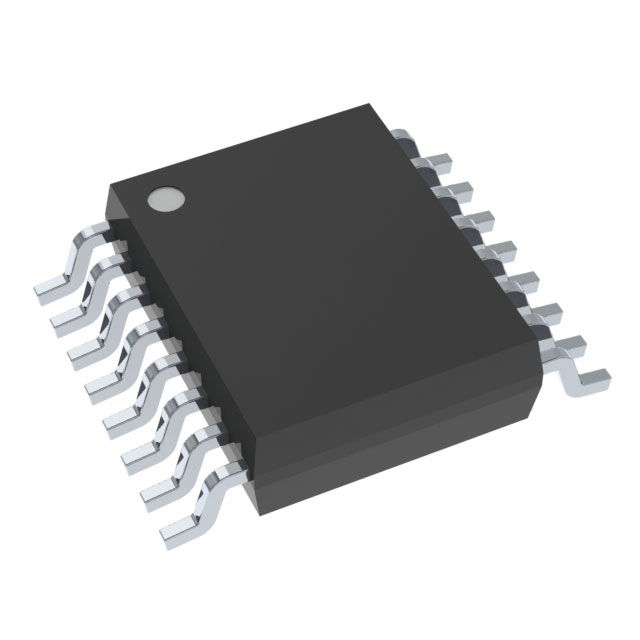

For picture reference, please see the specifications
< >

Commodity Model:LM46002AQPWPRQ1

Trade Name:LM46002AQPWPRQ1

Data Manual:LM46002AQPWPRQ1.pdf

Brand:TI

Particular Year:23+

Package:16-HTSSOP

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LM46002AQPWPRQ1
Package
16-HTSSOP
Describe
Step-Down Switching Regulator IC Positive Adjustable 1V 1 Output 2A 16-PowerTSSOP (0.173", 4.40mm Width)

Product Description

The LM46002AQPWPRQ1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving load currents up to 2 A from an input voltage of 3.5 V to 60 V. The LM46002AQPWPRQ1 offers excellent efficiency, output accuracy, and voltage drop. The extended family offers a variety of load current options and a maximum input voltage of 36 V. The LM46002AQPWPRQ1 features peak current mode control for simple control loop compensation and cycle-by-cycle current limiting. Optional features include programmable switching frequency, synchronisation, power good flag, precision enable, internal soft-start, extended functionality, and other optional features, providing a flexible and easy-to-use platform for a wide range of applications for a variety of applications. Discontinuous conduction and automatic frequency reduction Automatic frequency reduction at light loads improves light load efficiency. The series requires few external components. The pin arrangement allows for simple, optimised PCB layout. Protection features include thermal shutdown, VCC undervoltage lockout, cycle-by-cycle current limit, and output short-circuit protection.


Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 3.5V

Voltage - Input (Max): 60V

Voltage - Output (Min/Fixed): 1V

Voltage - Output (Max): 28V

Current - Output: 2A

Frequency - Switch: 200kHz ~ 2.2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Shell: 16-PowerTSSOP (0.173", 4.40mm Width)

Supplier Device Package: 16-HTSSOP


Applications

● Sub-amplitude band 12 V and 24 V automotive

● Telecommunications systems

● Commercial vehicle power supplies

● General purpose wide VIN regulation

● Efficient point-of-load regulation
