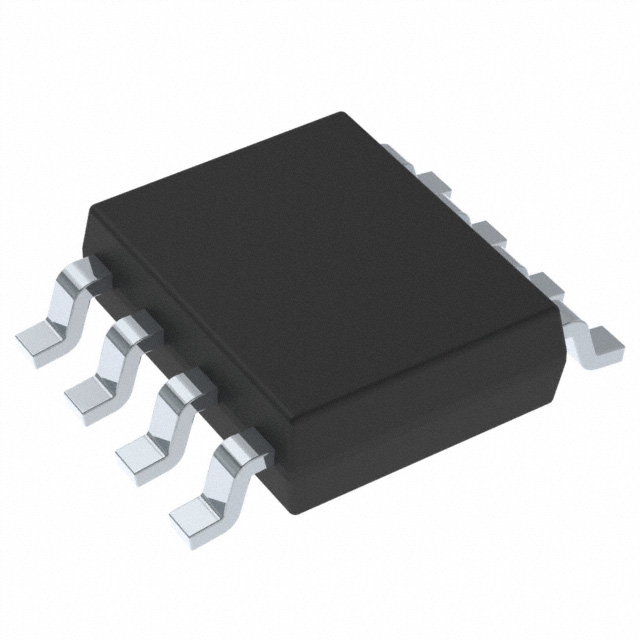

LMR14020SQDDARQ1 is a 40 V, 2 A step down regulator with an integrated high-side MOSFET. With a wide input range from 4 V to 40 V, it’s suitable for various applications from industrial to automotive for power conditioning from unregulated sources.

Features

4 V to 40 V Input Range

2 A Continuous Output Current

Ultra-low 40 µA Operating Quiescent Current

90 mΩ High-Side MOSFET

Minimum Switch-On Time: 75 ns

Current Mode Control

Adjustable Switching Frequency from 200 kHz to 2.5 MHz

Frequency Synchronization to External Clock

Spread Spectrum Option for Reduced EMI

Internal Compensation for Ease of Use

High Duty Cycle Operation Supported

Precision Enable Input

1 µA Shutdown Current

External Soft-start

Thermal, Overvoltage and Short Protection

Applications

Automotive Battery Regulation

Industrial Power Supplies

Telecom and Datacom Systems

General Purpose Wide Vin Regulation
