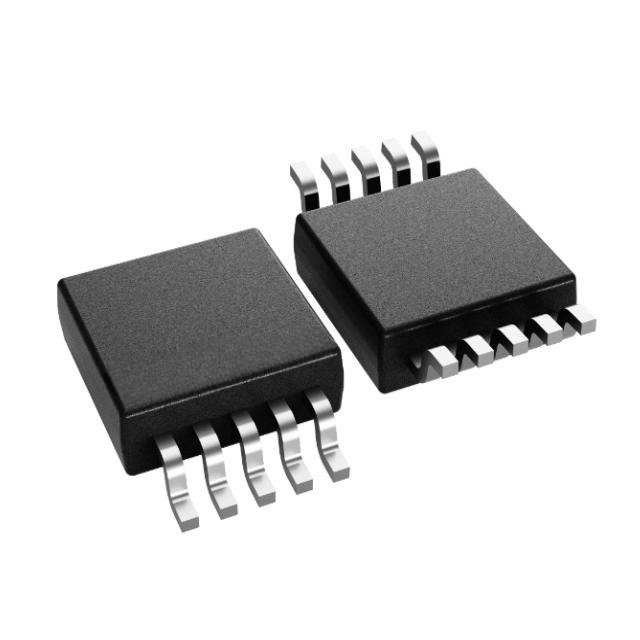

For picture reference, please see the specifications
< >

Commodity Model:LM5165XQDGSRQ1

Trade Name:LM5165XQDGSRQ1

Data Manual:LM5165XQDGSRQ1.pdf

Brand:TI

Particular Year:23+

Package:10-VSSOP

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LM5165XQDGSRQ1
Package
10-VSSOP
Describe
Step-Down Switching Regulator IC Positive Fixed 5V 1 Output 150mA 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Product Description

The LM5165XQDGSRQ1 is a compact, easy-to-use, 3 V to 65 V, ultra-low IQ synchronous step-down converter with high efficiency over a wide input voltage and load current range. The device integrates both high-side and low-side power MOSFETs to provide up to 150-mA output current at a fixed output voltage. Output currents of up to 150 mA are available at fixed output voltages of 3.3 V or 5 V, or at adjustable output voltages. The converter is designed to simplify implementation while providing options to optimise performance for the target application. Pulse Frequency Modulation (PFM) mode for optimal light-load efficiency, or select Constant On-Time (COT) control for a nearly constant operating frequency. Both control schemes eliminate the need for loop compensation while providing excellent line and load transient response transient response and short PWM on-time buck conversion ratios.


Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Fixed

Number of Outputs: 1

Voltage - Input (Min): 3V

Voltage - Input (Max): 65V

Voltage - Output (Min/Fixed): 5V

Voltage - Output (Maximum): -

Current - Output: 150mA

Frequency - Switching: 50kHz ~ 600kHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Package/Housing: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Supplier Device Package: 10-VSSOP


 Applications

● Automotive and battery-powered devices

● High voltage LDO replacements

● General purpose bias power supplies
