Trade Name:LM5575Q0MHX/NOPB
Data Manual:LM5575Q0MHX/NOPB.pdf
Brand:TI
Particular Year:23+
Package:16-HTSSOP
Delivery Date:New and Original
Stock: 1000pcs
The LM5575Q0MHX/NOPB is an easy-to-use step-down regulator that enables design engineers to design and optimise power supplies.The LM5575Q0MHX/NOPB operates over an input voltage range of 6 V to 75 V and delivers 1.5 A of continuous output current with 330 capacitors.The N-channel MOSFETs... The regulators feature an emulated current-mode architecture that provides inherent line regulation, tight load transient response, and easy loop compensation without the low duty cycle limitations associated with current mode. The operating frequency is adjustable from 50 kHz to 500 kHz for size and efficiency optimisation. The LM5575Q0MHX/NOPB ensures robustness, short circuit protection, thermal shutdown and remote shutdown through cycle-by-cycle current limiting. The device is available in a power-enhanced 16-pin HTSSOP package with exposed die attach pads for heat sinking. The device is available in a power-enhanced 16-pin HTSSOP package with exposed die attach pads for heat dissipation. the LM5575Q0MHX/NOPB is supported by a full suite of online design tools.
Product Attributes
Function: Buck
Output Configuration: Positive
Topology: Buck
Output Type: Adjustable
Number of Outputs: 1
Voltage - Input (Min): 6V
Voltage - Input (Max): 75V
Voltage - Output (Min/Fixed): 1.225V
Voltage - Output (Max): 70V
Current - Output: 1.5A
Frequency - Switching: 50kHz ~ 500kHz
Synchronous Rectifier: None
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount

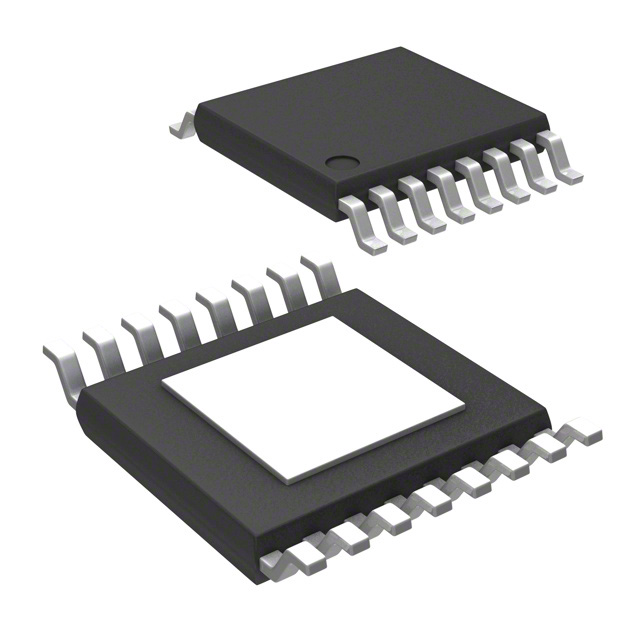

Package/Case: 16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-HTSSOP
Applications
● Automotive
● Industrial
