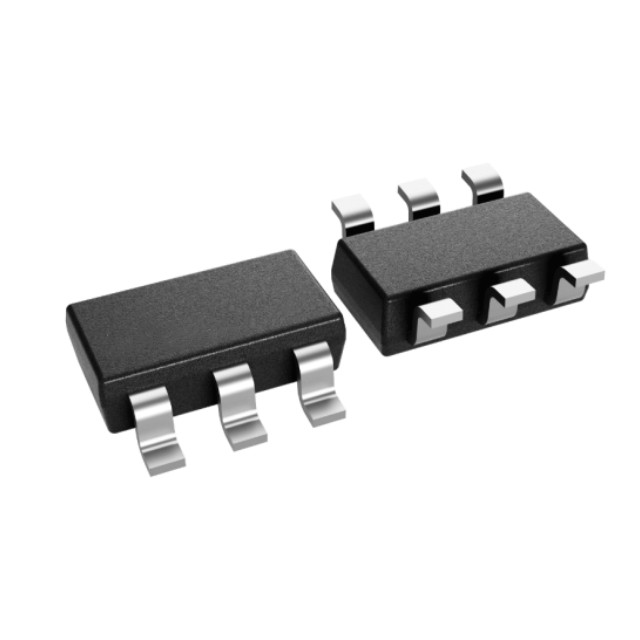

For picture reference, please see the specifications
< >

Commodity Model:LMR16006YQ3DDCRQ1

Trade Name:LMR16006YQ3DDCRQ1

Data Manual:LMR16006YQ3DDCRQ1.pdf

Brand:TI

Particular Year:23+

Package:SOT23-6

Delivery Date:New and Original

Stock: 8000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LMR16006YQ3DDCRQ1
Package
SOT23-6
Describe
Automotive Qualified SIMPLE SWITCHER® 40V (Transient 65V), 0.6A Buck Regulator with 28µA IQ

Product Description

The LMR16006YQ3DDCRQ1 is a pulse width modulated (PWM) DC-DC buck regulator. The device is widely used for power conditioning of unregulated power supplies in applications ranging from industrial to automotive. The regulator has a standby current of 28μA in ECO mode, making it ideal for battery powered systems. An ultra-low shutdown current of 1μA further extends battery life. A fixed operating frequency of 2.1MHz allows the device to maintain a low output ripple voltage while using small external components. Soft-start and compensation circuits are implemented internally to minimise the number of external components used with the device. Optimised to deliver up to 600mA of load current with a typical feedback voltage of 0.765V, the device has built-in protection features such as pulse-by-pulse current limit protection, thermal sensing for excessive power consumption and thermal shutdown protection. The LMR16006YQ3DDCRQ1 is available in a thin, small-form-factor transistor (SOT)-6L package (2.9mm x 1.6mm).


Product Characteristics

The LMR16006Y-Q1 is an automotive-grade product that complies with AEC-Q100 Level 1 (-40°C to +125°C operating junction temperature range).

Input voltage range: 4V to 40V with transients up to 65V

Output current up to 600mA

2.1MHz switching frequency

Ultra-low standby current of 28µA in ECO mode

1µA shutdown current

Supports high duty cycle operation

Adjustable 3.3V and 5V fixed output options

Internal compensation

High voltage enable input

Internal soft-start

Overcurrent protection

Thermal protection

Small overall solution size (SOT-6L package)


Application Areas

Automotive

Battery-powered equipment

Industrial distributed power systems

Portable handheld instruments

Portable media players

Automotive aftermarket add-ons: video, GPS, entertainment
