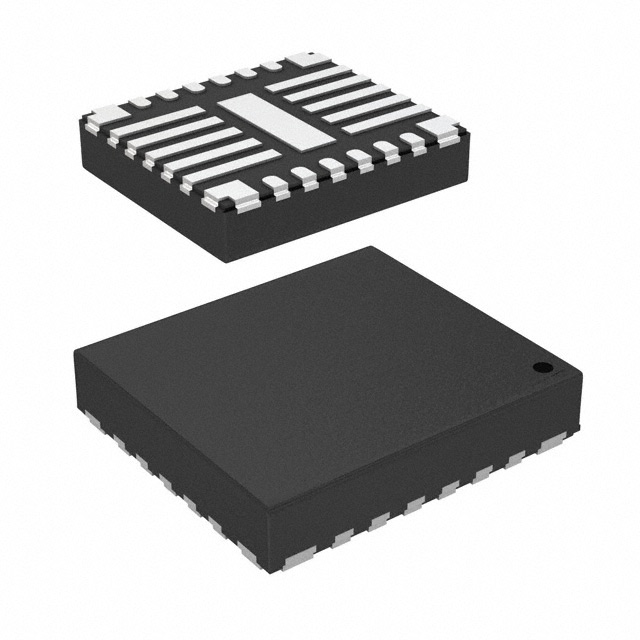

Commodity Model:LP875761ARNFRQ1

Trade Name:LP875761ARNFRQ1

Data Manual:LP875761ARNFRQ1.pdf

Brand:TI

Particular Year:23+

Package:VQFN-HR-26

Delivery Date:New and Original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LP875761ARNFRQ1
Package
VQFN-HR-26
Describe
Four-Phase, 3MHz, 1V, 16A DC/DC Buck Converter with Integrated Switches

Product Description

The LP875761ARNFRQ1 device is designed to meet the power management requirements of new processors and platforms in a variety of automotive power applications. The device consists of four step-down DC/DC converter cores configured as four-phase outputs with forced PWM mode. The device is controlled by an I2C compatible serial interface and enable signals.


The LP875761ARNFRQ1 supports remote differential voltage sensing of the multi-phase outputs to compensate for the IR voltage drop between the regulator output and the point-of-load (POL) to improve output voltage accuracy. The switching clock can be forced into PWM mode and synchronised to an external clock for greater interference reduction.


The LP875761ARNFRQ1 device supports load current measurement without the need for an external current sense resistor. The device also supports programmable startup and shutdown delays and sequences synchronised with the enable signal. These sequences may also include GPIO signals to control external regulators, load switches, and processor reset. During startup, the device controls the output slew rate to minimise output voltage overshoot and inrush current.


Features

- Automotive Compliance

- The following features are compliant with AEC-Q100:

- Device Temperature Class 1: -40°C to +125°C ambient operating temperature range

- Device HBM ESD Classification 2

- Device CDM ESD Classification C4B

- Input voltage: 2.8V to 5.5V

- Output Voltage: 1.0V

- Four high-efficiency step-down DC/DC converter cores:

- Maximum output current: 16A (4 A/phase)

- Switching frequency: 3MHz

- Spread spectrum mode and phase interleaving

- Configurable General Purpose I/O (GPIO)

- I2C-compatible interface supporting standard (100kHz), fast (400kHz), fast+ (1MHz), and high speed (3.4MHz) modes

- Interrupt function with programmable mask

- Programmable power-good signal (PGOOD)

- Output short circuit and overload protection

- Over-temperature warning and protection

- Overvoltage protection (OVP) and undervoltage lockout (UVLO)


Applications

- Automotive Infotainment Systems

- Instrument clusters

- Radar

- Camera Power Applications

Associated Products

Model

Brand

Package

Quantity

Describe

LT1946AEMS8E

ADI

MSOP-8

15000

Switching Regulator 2.7MHz Boost DC/DC Conv w/ 1.5A Switch

TPS62260DRVR

TI

WSON-6

12000

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 600mA 6-WDFN Unpopulated Pad

MAX20830TAFE

Maxim

FC2QFN-16

5000

30A, 2MHz, 2.7V to 16V Integrated Step-Down Switching Regulator with PMBus

MAX20075DATCE/V

Maxim

TDFN-12

2000

Step-Down Switching Regulator IC Positive Adjustable (Fixed) 1V (3.3V) 1 Output 600mA

MAX20075DATCD/VY

Maxim

TDFN-12

1000

Step-Down Switching Regulator IC Positive Adjustable (Fixed) 3V (3.6V) 1 Output 600mA 12-WFDFN Exposed Pad

MAX20075DATCC/VY

Maxim

12-TDFN

1000

Buck Switching Regulator IC Positive Adjustable 1V 1 Output 600mA 12-WFDFN Exposed Pad

MAX20075DATCC/V

Maxim

12-TDFN

1000

Step-Down Switching Regulator IC Positive Programmable (Fixed) 1V 1 Output 600mA 12-WFDFN Exposed Pad

MAX20075DATCB/V

Maxim

12-TDFN

1000

Step-Down Switching Regulator IC Positive Programmable (Fixed) 1V 1 Output 600mA 12-WFDFN Exposed Pad

MAX17227AATA

Maxim

8-TDFN

2000

Boost Switching Regulator IC Positive Adjustable 2.3V 1 Output 850mA 8-WFDFN Exposed Pad

MAX17227AANT

Maxim

6-WLP

1000

Boost Switching Regulator IC Positive Adjustable 2.3V 1 Output 2A
