Trade Name:LP875630RNFRQ1
Data Manual:LP875630RNFRQ1.pdf
Brand:TI
Particular Year:23+

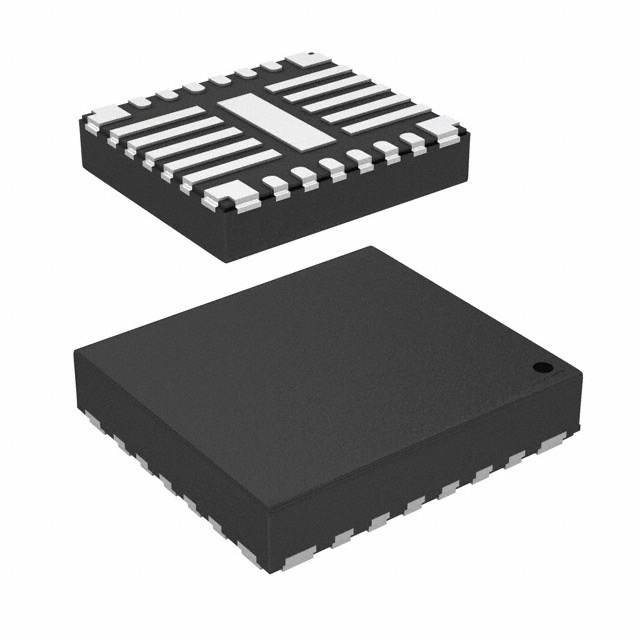

Package:VQFN-HR-26
Delivery Date:New and Original
Stock: 2700pcs
The LP875630RNFRQ1 is designed to meet the power management requirements of the latest processors and platforms in a variety of automotive power applications. The device consists of four step-down DC/DC converter cores that can be configured with one four-phase output, one three-phase and one single-phase output, two two-phase outputs, one two-phase and two single-phase outputs, or four single-phase outputs. The device is controlled by an I2C compatible serial interface and enable signals.
Features
- Automotive Compliant
- The following features are compliant with the AEC-Q100 standard:
- Device Temperature Class 1: Ambient operating temperature range of -40°C to +125°C.
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification C4B
- Input voltage: 2.8V to 5.5V
- Output voltage: 0.6V to 3.36V
- Four high-efficiency step-down DC/DC converter cores:
- Maximum output current: 16A (4A/phase)
- Programmable output voltage slew rate range: 0.5mV/µs to 10mV/µs
- Switching frequency: 2MHz
- Spread spectrum mode and phase interleaving
- Configurable General Purpose I/O (GPIO)
- I2C-compatible interface supporting standard (100kHz), fast (400kHz), fast+ (1MHz), and high speed (3.4MHz) modes
- Interrupt function with programmable mask
- Programmable power-good signal (PGOOD)
- Output short circuit and overload protection
- Over-temperature warning and protection
- Overvoltage protection (OVP) and undervoltage lockout (UVLO)
Applications
Automotive infotainment, instrument cluster, radar and camera power applications
