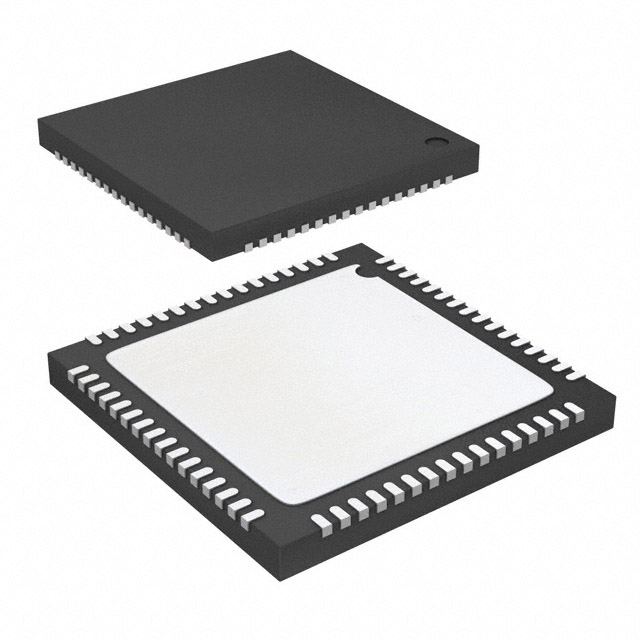

AD9257TCPZ-65-CSL is an octal, 14-bit, 65 MSPS analog-to-digital converter (ADC) with an on-chip sample-and hold circuit designed for low cost, low power, small size, and ease of use.

Product Features

Low power: 55 mW per channel at 65 MSPS with scalable power options

SNR = 75.5 dB (to Nyquist)

SFDR = 91 dBc (to Nyquist)

DNL = ±0.6 LSB (typical), INL = ±1.1 LSB (typical)

Serial LVDS (ANSI-644, default)

Low power, reduced signal option (similar to IEEE 1596.3)

Data and frame clock outputs

650 MHz full power analog bandwidth

2 V p-p input voltage range

1.8 V supply operation

Serial port control

Full chip and individual channel power-down modes

Flexible bit orientation

Built-in and custom digital test pattern generation

Programmable clock and data alignment

Programmable output resolution

Standby mode

Applications

Low Earth orbit (LEO) space payloads

Quadrature and diversity radio receiver

Optical imaging
