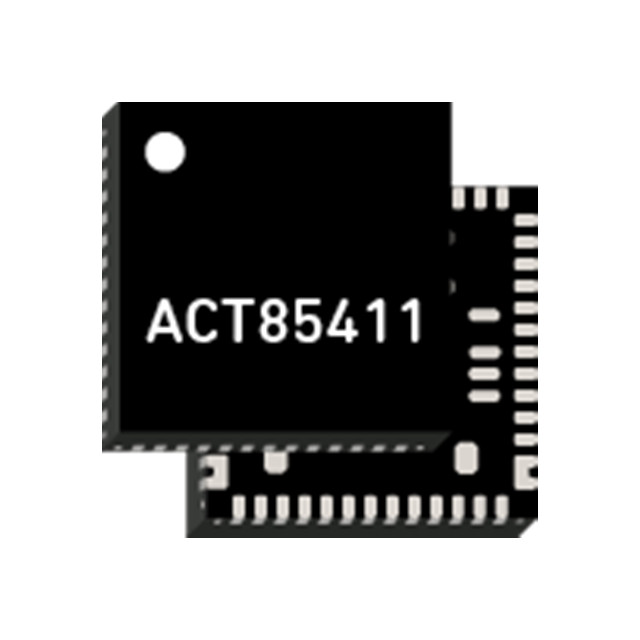

The ACT85411-101 Power Management (PMIC) is designed to implement power loss protection (PLP) and PMIC in a single chip. This PMIC is a highly integrated configurable multi-output PMIC with an inbuilt PLP. ACT85411-101 integrates all electronic fuses, step-down and step-up FETs. This PMIC is equipped with two high-efficiency step-down regulators, capable of providing a peak current of up to 12A and a continuous output current of up to 10A.

ACT85411-101 optimizes capacitor size and supports system runtime in backup mode. This PMIC operates within the boost PLP storage voltage range of 5.5V to 31V, complies with the RoHS Directive, and is lead-free and halogen-free. ACT85411-101 is available in a 6mmx6mm FCOL 52 QFN package and is compatible with standard PTH PCB boards.

Key features

Single-chip design for implementing PLP and PMIC in a single chip

Integrated electronic fuse/step-down/step-up FET

Working input voltage range: 2.7V to 14.4V, with a maximum blocking capacity of 20V

Programmable 10A input current limit for electronic fuses

Programmable input UV/OV/OC/SC and surge control

5.5V to 31V boost capacitor charger

Two 10A maximum values and 12A peak values are synchronized for efficient voltage reduction

1 1A step-down - boost, output voltage range from 9.6V to 16V

One (200mA or 400mA) mini step-down voltage regulator

One 200mA LDO

Six programmable GPIOs

Storage capacitor inspection and reading

Application scenarios

The ACT85411-101 PMIC is suitable for solid-state drives (SSDS), industrial applications, backup power supplies, and hot-swappable/hot-swappable devices.
