The TPS6522312RAHRQ1 is a 5.5V power management IC (PMIC) suitable for ADAS processors, featuring four step-down converters and three Ldos, and reaching ASIL-B grade. The following are its main features:

It meets the requirements of automotive applications

It has the following characteristics in compliance with the AEC-Q100 standard:

Input power supply: 3V to 5.5V

Temperature Class 1: -40°C to +125°C (Ambient temperature)

HBM classification level 2

The CDM classification level is C4A

The TPS6522312RAHRQ1 device meets the power management requirements of new processors and platforms in various safety-related applications. The rated ambient temperature range of this device is from -40°C to +125°C, making it suitable for a wide range of automotive applications. This device is equipped with four DC/DC BUCK converters. In addition, the TPS6522312RAHRQ1 features three low drop (LDO) regulators, which can also be used as load switches.

Core parameters

Topology: Step-down synchronous (4), Linear (LDO) (3)

Output number: 7

Frequency - Switch: 2.2MHz, 4.4MHz

Voltage/current - output ratio: 0.5V to 3.3V, 3.5A

Voltage/current - output 2:0.5V to 3.3V, 3.5A

Voltage/current - output: 3:0.5V to 3.3V, 2.4A

With LED driver: None

With monitor: None

With sequencer: None

Voltage - Power supply: 3V to 5.5V

Operating temperature: -40°C to 125°C

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

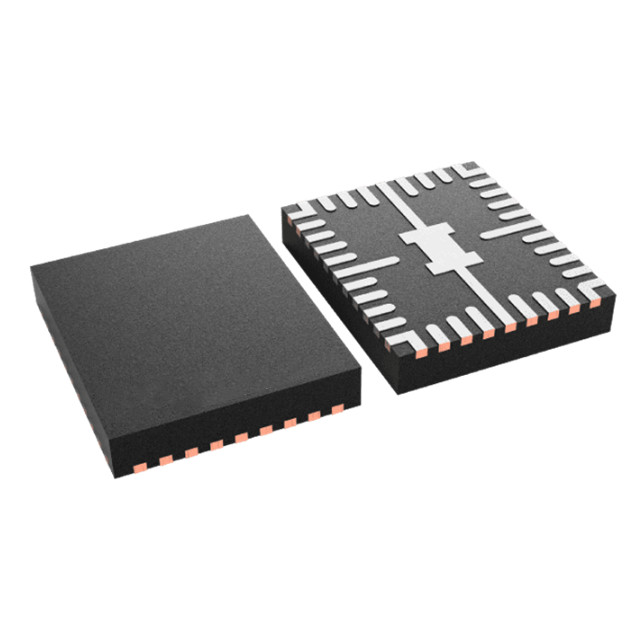

Device package: 36-VQFN-HR (5x6)
