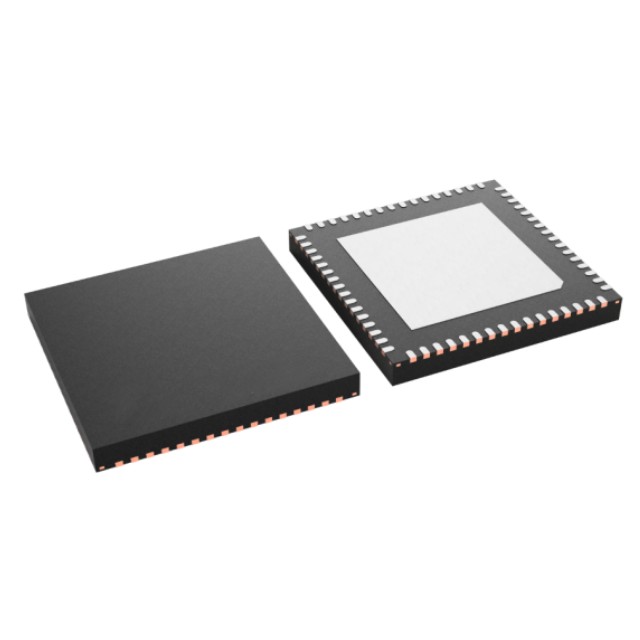

LMK5C22212ARGCRS1 is a high-performance network synchronizer and jitter cleaner designed to meet the stringent requirements of wireless communications and infrastructure applications.

Feature Of LMK5C22212ARGCRS1

• Ultra-low jitter BAW VCO based Wireless Infrastructure and Ethernet clocks

– 40fs typical/ 57fs maximum RMS jitter at 491.52MHz

– 50fs typical/ 62fs maximum RMS jitter at 245.76MHz

• 2 high-performance Digital Phase Locked Loops (DPLLs) with 2 Analog Phase Locked Loops (APLLs)

– Programmable DPLL loop filter bandwidth from 1mHz to 4kHz

– < 1ppt DCO frequency adjustment step size

• 2 differential or single-ended DPLL inputs

– 1Hz (1PPS) to 800MHz input frequency

– Digital Holdover and Hitless Switching

• 12 differential outputs with programmable HSDS, AC-LVPECL, LVDS and HSCL formats

– Up to 16 total frequency outputs when configured with 6 LVCMOS frequency outputs on OUT0_P/N, OUT1_P/N, GPIO1 and GPIO2 and 10 differential outputs on OUT2_P/N to OUT11_P/N

– 1Hz (1PPS) to 1250MHz output frequency with programmable swing and common mode

– PCIe Gen 1 to 6 compliant

• I2C or 3-wire/4-wire SPI

Applications Of LMK5C22212ARGCRS1

• 4G and 5G Wireless Networks

– Active Antenna System (AAS), mMIMO

– Macro Remote Radio Unit (RRU)

– CPRI/eCPRI Baseband, Centralized,

Distributed Units (BBU, CU, DU)

– Small cell base station

• SyncE (G.8262), SONET/SDH (Stratum 3/3E, G.813, GR-1244, GR-253), IEEE-1588 PTP secondary clock

• Jitter cleaning, wander attenuation, and reference clock generation for 112G/224G PAM4 SerDes

• Optical Transport Networks (OTN G.709)

• Broadband fixed line access

• Industrial

– Test and measurement
