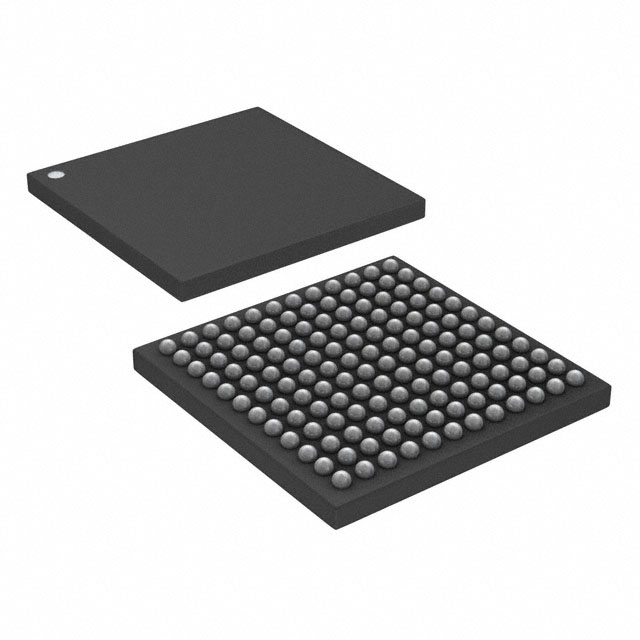

The RC32614A000GBB synchronizer generates ultra-low jitter precise timing signals based on the IEEE 1588 Precise Time Protocol (PTP) and Synchronous Ethernet (SyncE). The RC32614A000GBB can be used as a single timing and synchronization source for the system, or two devices can be used as redundant pairs to enhance system reliability.

Functional features

Six independent timing channels

Ultra-low phase noise (UPN), wideband analog PLL (APLL) channel, jitter less than 88fs RMS

Digital PLL (DPLL) can lock any frequency within the range of 0.5Hz to 1GHz

The DPLL/ Numerical Control oscillator (DCO) can generate any frequency from 0.5Hz to 1GHz

The DCO output can be consistent in phase and frequency with the output of any DPLL or DCO

DPLL complies with the ITU-T G.8262 Synchronous Ethernet (SyncE) standard

IEEE 1588 support:

The DCO can be controlled by external IEEE 1588 software to synthesize a Precision Time Protocol (PTP)/IEEE 1588 clock with a frequency resolution of less than 1.11x10-16

The combined bus simplifies the standard program that conforms to ITU-T G.8273.2

Precise (1ps) resolution for phase measurement and control

All outputs/inputs can be configured for decoding/encoding of PWM clock signals

PWM can be used to send and receive embedded frame pulses and synchronization pulses, as well as daily time (ToD) and other data

This device requires a crystal oscillator or fundamental mode crystal: 25MHz to 54MHz

The optional XO_DPLL input allows for a wider range of XO, TCXO or OCXO frequencies (1MHz to 150MHz), making it suitable for applications that require a highly stable local oscillator.

The serial processor port supports 1MHz I2C or 50MHz SPI

In addition, the RC32614A000GBB can be used to actively measure and compensate for clock propagation delays across backplanes and circuit boards, ensuring that time and phase are accurately allocated between IEEE 1588 timestamp units (TSUs) in the system with minimal time error. This device supports multiple independent channels for controlling IEEE 1588 clock synthesis, SyncE clock generation, jitter attenuation and general frequency conversion.

Application scenarios

A reference clock of up to 112Gbps PAM-4

400/800Gbps pizza boxes and modular switches and routers

Optical transmission network

Synchronous Ethernet equipment

Telecommunication boundary clock (T-BC) and telecommunication time-dependent clock (T-TSC) conforming to ITU-T G.8273.2 standard
