The LMK5B12212RGCR is a network synchronizer launched by (TI), featuring an integrated 2.5GHz BAW VCO, ultra-low jitter, 12 output channels, one DPLL and two APLLs.

Technical Specification

Type: Clock synchronizer and Jitter eliminator

PLL: Yes

Input: Difference

Output: HCSL, HSDS, LVCMOS, LVDS, LVPECL

Number of circuits: 1

Ratio - Input: Output: 2:12

Differential - Input: Output: Yes/Yes

Frequency - Maximum: 25MHz, 200MHz, 650MHz, 1.25GHz

Frequency divider/frequency multiplier: None/Yes

Voltage - Power supply: 3.135V to 3.465V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

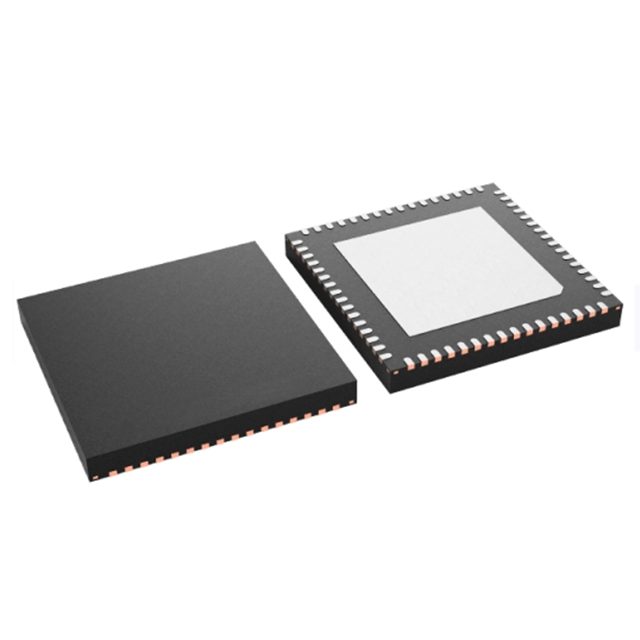

Package/Shell: 64-VFQFN

The LMK5B12212RGCR is based on BAW VCO (voltage-controlled oscillator), with typical RMS jitter of 13fs at 625MHz, typical RMS jitter of 24fs at 312.5MHz, and maximum RMS jitter of 60fs‌.

In addition, the LMK5B12212RGCR synchronizer is widely used in various networks and communication devices that require high-precision clock synchronization, including:

Ethernet switches and routers ‌ : Meet 400G line card and network card requirements.

Wireless base station ‌ : For wireless backhaul and base station clock synchronization.

Test & Measurement equipment ‌ : Provides a stable clock source in precision measurement and timing applications.

Medical imaging equipment ‌ : Medical equipment that requires high precision clock synchronization.
