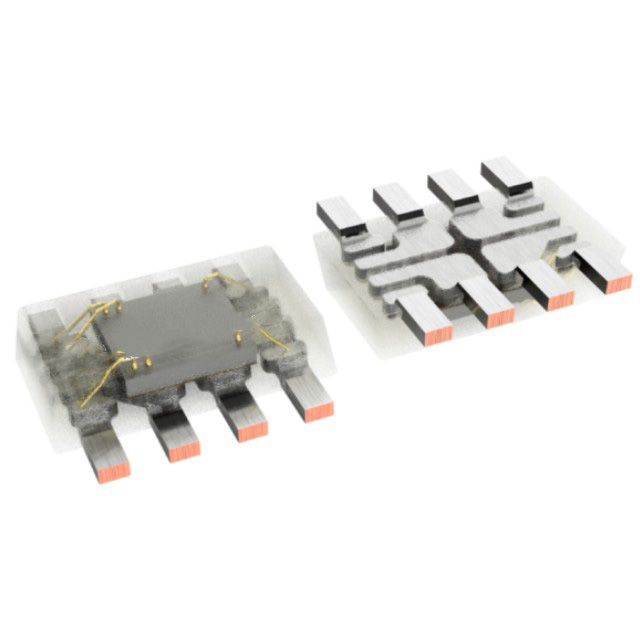

OPT3005DTSR: Ambient Light Sensor (ALS) for Video Surveillance Cameras, SOT-5X3-8

Product Details:

Model: OPT3005DTSR

Package: SOT-5X3-8

Type: Optical Sensor

Overview:

The OPT3005DTSR is a sensor designed to measure visible light density. Its spectral response closely matches the visual response of the human eye and exhibits exceptional blocking capability against infrared light at 850nm and 940nm (at larger angles of incidence).

The OPT3005DTSR is a single-chip lux meter for measuring the intensity of light visible to the human eye. Its precise spectral response and exceptional infrared rejection enable accurate measurement of visible light intensity, unaffected by any stray light from the light source or active illumination at 850nm or 940nm.

OPT3005DTSR Product Features:

Precision optical filtering matched to human vision:

Suppresses 99.99+% (Class 4 or higher) near-infrared (NIR) light (at large angles of incidence)

Built-in automatic full-scale illuminance range selection logic switches measurement ranges based on input light conditions, with excellent gain matching between ranges

Measurement range: 20 mlux to 167 klux

23-bit effective dynamic range with automatic gain range setting

12 binary-weighted full-scale range settings: Matching accuracy between ranges <0.2% (typical)

Low operating current: 1.8µA (typical)

Operating temperature range: –40°C to +85°C

Wide supply voltage range: 1.6V to 3.6V

I/O capable of withstanding 5.5V voltage

Flexible interrupt system

Compact form factor:

2.1mm × 1.9mm × 0.6mm SOT-5X3 package
