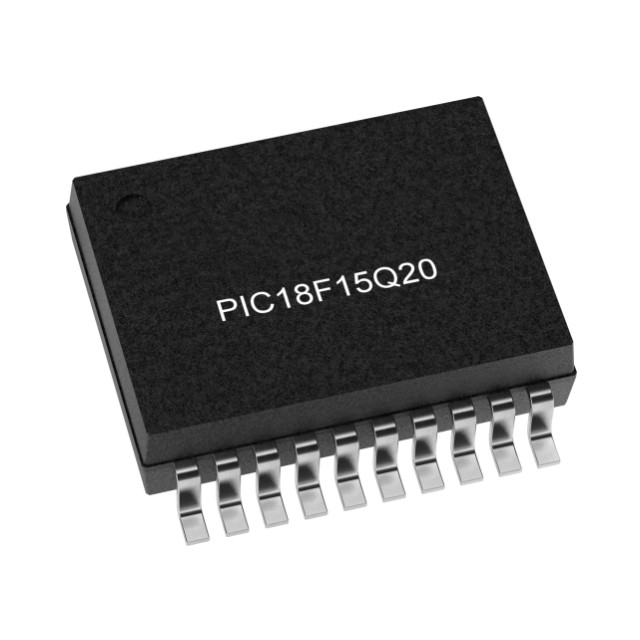

The PIC18F15Q20T-I/REB high-performance 8-bit microcontroller (MCU) is specifically designed for multi-voltage domain embedded systems and supports sensor interfaces and real-time control applications. This MCU adopts a RISC architecture optimized by the C compiler, with a main frequency of up to 64MHz and a minimum instruction cycle of 62.5 nanoseconds. It supports 4 DMA controllers, 128-level hardware stack and vector interrupt functions, and is suitable for complex system control.

In addition, the PIC18F15Q20T-I/REB offers 32KB of program flash memory, 2KB of data SRAM, and 256 bytes of data EEPROM. It supports memory access partitioning (MAP) and SAFLOCK technologies, enabling code partition protection and one-time programming functions.

Main parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 16

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 2K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 11x10b SAR

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 20-VQFN (3x3) ‌

The PIC18F15Q20T-I/REB features low power consumption and small size, and can be widely applied in space-sensitive applications and markets, including automotive, industrial control, computing, consumer, Internet of Things and medical.
