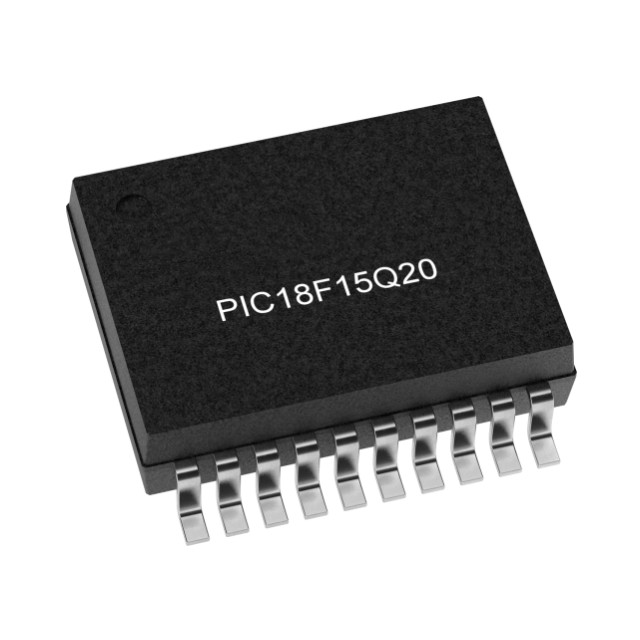

The PIC18F15Q20T-I/SS microcontroller is an 8-bit microcontroller (MCU) product launched by Microchip. It adopts a RISC architecture optimized by the C compiler, with a main frequency of up to 64MHz and a minimum instruction cycle of 62.5 nanoseconds. This MCU supports 4 DMA controllers, 128-level hardware stack and vector interrupt functions, and is suitable for complex system control.

Core parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 16

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 2K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 11x10b SAR

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 20-SSOP

Application scenarios

The PIC18F15Q20T-I/SS microcontroller is suitable for use in automotive, industrial control, computing, consumer electronics, medical, wearable devices and Internet of Things systems. It is particularly suitable as an I3C to I2C communication bridge or a supporting MCU, and supports space-sensitive applications.
