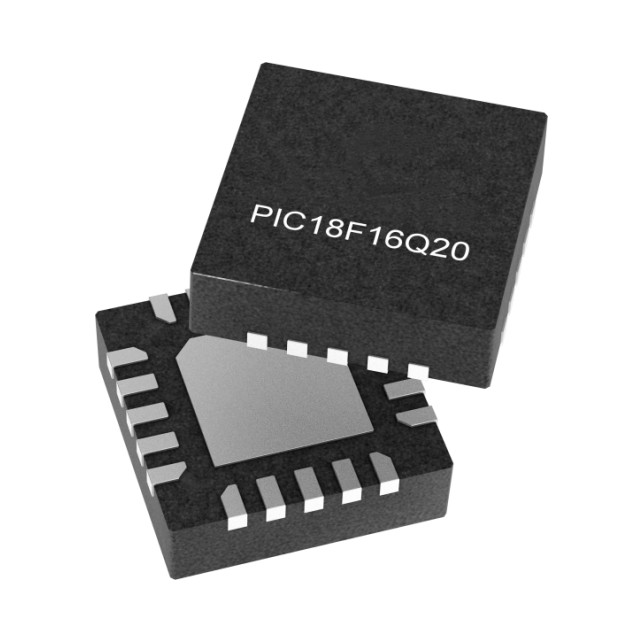

The PIC18F16Q20T-I/REB microcontroller is an 8-bit microcontroller (MCU) product launched by Microchip. It adopts a RISC architecture optimized by the C compiler, with a main frequency of up to 64MHz and a minimum instruction cycle of 62.5 nanoseconds. It supports 4 DMA controllers, 128-level hardware stack and vector interrupt functions, and is suitable for complex system control. The following are its core parameters:

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capabilities: DALI, FIFO, I2C, LINbus, SMBus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, DMA, LVD, POR, PWM, WDT

I/O count: 16

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 4K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 11x10b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 20-VQFN (3x3)

In addition, the PIC18F16Q20T-I/REB MCU integrates an I3C module, supporting high-speed communication (1V operating voltage) and enabling multi-voltage domain interconnection without the need for external level conversion. In addition, it is equipped with a 10-bit 300ksps ADC (with computing function), an 8-bit signal routing port and capacitive touch sensing, which is suitable for sensor data acquisition and interaction. Typical applications include fields such as automobiles, industrial control, computing, consumer goods, the Internet of Things and healthcare.
