The IGW50N65F5FKSA1 discrete IGBT is optimized for switching >60kHz to provide optimal efficiency and bridge the gap between MOSFETs and IGBTs. The 650V TRENCHSTOP™ 5 F5 IGBT is designed with a silicon carbide diode for low inductance and offers 1% higher efficiency than the 650V TRENCHSTOP™ 5 H5 series.

Product Specifications:

Voltage-emitter breakdown (Max) : 650 V

Current - Collector (Ic) (Max) : 80 A

Current-collector pulse (Icm) : 150 A

Vce(on) (Max.) for different Vge and Ic: 2.1V@15V, 50A

Power - Max. : 305 W

Switching power: 490µJ (on), 160µJ (off)

Input type: Standard

Grid charge: 120 nC

Td (On/off) value at 25°C: 21ns/175ns

Test conditions: 400V, 25A, 12ohm, 15V

Operating temperature: -40°C ~ 175°C (TJ)

Installation type: Through hole

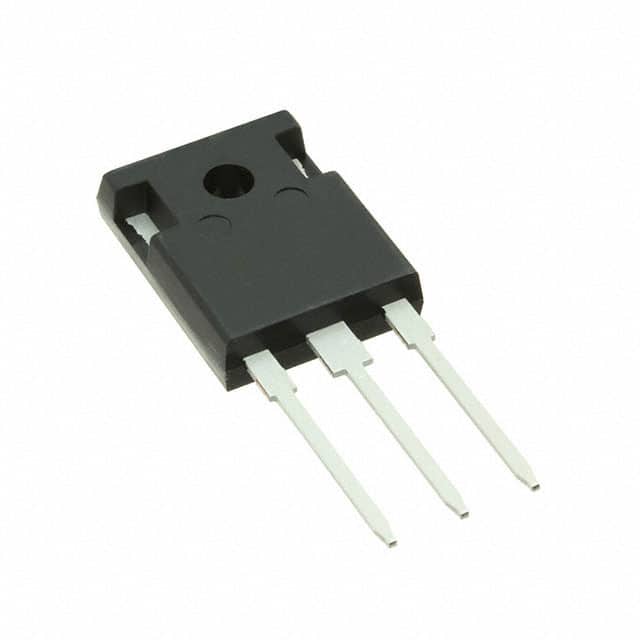

Package/housing: TO-247-3

Supplier device package: PG-TO247-3

Basic product number: IGW50N65
