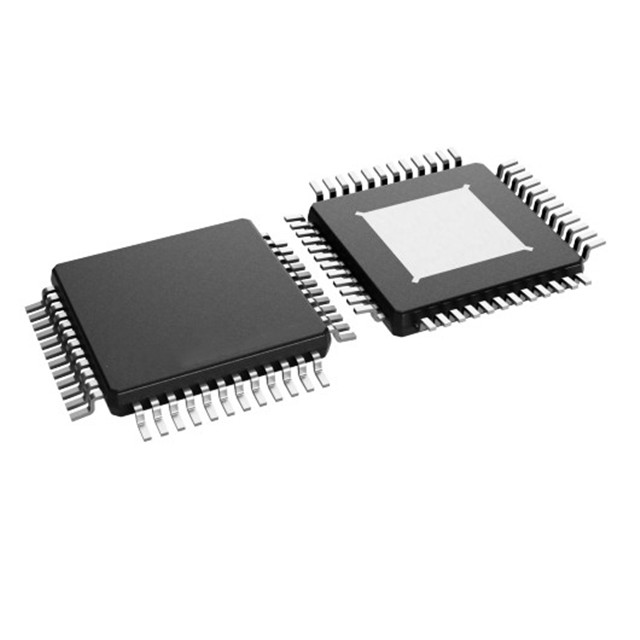

The BQ79731PHPRQ1 high-voltage battery pack monitor can measure the high-voltage node of voltage division in the battery system. It can measure the voltage across the contractor and the fuse, and check the isolation voltage in the battery junction box (BJB) system. Its main specifications include:

Function: Battery monitor

Battery chemical composition: Multi-chemical

Number of batteries: 1

Fault protection: Overcurrent

Interface: SPI

Operating temperature: -40°C to 125°C

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Packaging/Housing: 48-HTQFP (7x7)

In addition, the BQ79731PHPRQ1 features two integrated current detection paths and supports low-end shunt resistors. By using the coulometric counting function, precise SoC calculations can be carried out. 15 GPIO/ auxiliary inputs can be used for thermistor measurement, high-voltage measurement and driving relays. Four SW outputs can drive the MOSFET switch in the measurement path.

The BQ79731PHPRQ1 can be used as an interface and SPI HUB, capable of connecting up to eight independent SPI devices/groups. Overcurrent protection responses can be autonomously implemented through hardware pins to provide rapid protection in dangerous overcurrent events. The isolated bidirectional daisy-chain port supports transformer isolation and capacitor isolation. This device can also communicate with the MCU via UART and SPI. The typical applications of BQ79731PHPRQ1 include all-electric vehicles, plug-in hybrid vehicles and hybrid vehicles.
