The LC709204VXE-01TBG battery power meter is suitable for single-cell lithium-ion/polymer batteries and is part of the intelligent LiB power meter series. The LC709204VXE-01TBG uses the HG-CVR2 algorithm to measure the relative state of charge (RSOC) of the battery, and can provide accurate RSOC readings even under changing conditions such as temperature variations, loads, aging, and self-discharge.

Accurate RSOC measurement can extend the operating time of portable devices. The HG-CVR2 algorithm, also known as a battery gauge, battery monitor or battery meter, is highly versatile and suitable for a wide range of applications. LSI only needs to set a few parameters to immediately start measuring batteries, without the complex learning cycle in the manufacturing process. The LC709204VXE-01TBG has A working current consumption as low as 2µA, making it highly suitable for use in wearable devices and 1 series-N parallel battery configurations.

Product attributes

Product: Fuel Gauges

Battery type: Lithium-ion, Lithium Polymer

Output voltage: 4.6V

Working power supply voltage: 2.5V to 5.5V

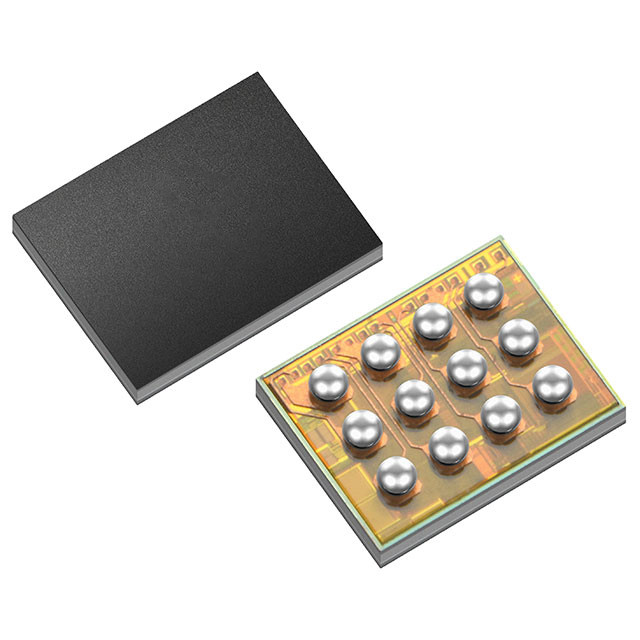

Packaging/Cabinet: WLCSP-12

Installation style: SMD/SMT

Series: LC709204V

Maximum operating temperature: + 85 ° C

Minimum operating temperature: -40 ° C

Pd- Power dissipation: 150 mW

Its application fields include:

Wearable/Internet of Things devices

Smart phone /PDA devices

Digital camera

Portable game console

Usb-related devices
