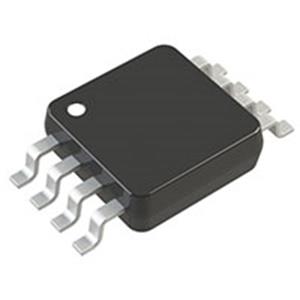

The ADA4807-2ARMZ is a dual-channel, low-power, low-noise, rail-to-rail (RRIO) voltage-feedback operational amplifier packaged in an 8-MSOP (3×3mm) package, specifically designed for applications such as high-speed signal processing, precision instrumentation, and communication systems. The chip features a 180MHz bandwidth, 225V/µs slew rate, and low noise (3.1nV/√Hz), making it suitable for applications such as data acquisition, audio processing, and industrial control.

ADA4807-2ARMZ Core Features

High-Speed Performance

Bandwidth of 180MHz (-3dB), ideal for high-frequency signal processing.

Slew rate of 225V/µs ensures fast transient response.

0.1% settling time of 47ns (4V step), optimised for high-speed ADC driving.

Low Noise & Low Distortion

Input noise voltage density of 3.1nV/√Hz @100kHz, suitable for precision measurements.

THD+N (Total Harmonic Distortion + Noise) is extremely low, only 0.0002% at 1kHz, suitable for high-fidelity audio.

Rail-to-Rail Input/Output (RRIO)

Input can exceed the supply rail by ±50mV, and output swing approaches the power rail, enhancing dynamic range.

Low Power Consumption & Wide Power Supply Range

Quiescent current is only 1mA (±5V supply), suitable for battery-powered devices.

Power supply range: 2.7V to 11V (single supply) or ±1.35V to ±5.5V (dual supply), suitable for various system designs.

Industrial-grade reliability

Operating temperature: -40°C to +125°C, suitable for harsh environments.

Specifications

Model: ADA4807-2ARMZ

Package: 8-MSOP (3×3mm)

Bandwidth: 180MHz (-3dB)

Slew rate: 225V/µs

Input noise voltage: 3.1nV/√Hz @100kHz

Input bias current: 1.2 µA (typical)

Input offset voltage: ±20 µV (typical)

Supply voltage: 2.7 V to 11 V (single supply) / ±1.35 V to ±5.5 V (dual supply)

Quiescent current: 1 mA (typical)

Output current: 80mA (typical)

Operating temperature: -40°C to +125°C

Product applications

High-speed battery-powered systems

High-density device systems

High-resolution analogue-to-digital converter (ADC) drivers

Portable test instruments

Active filters
