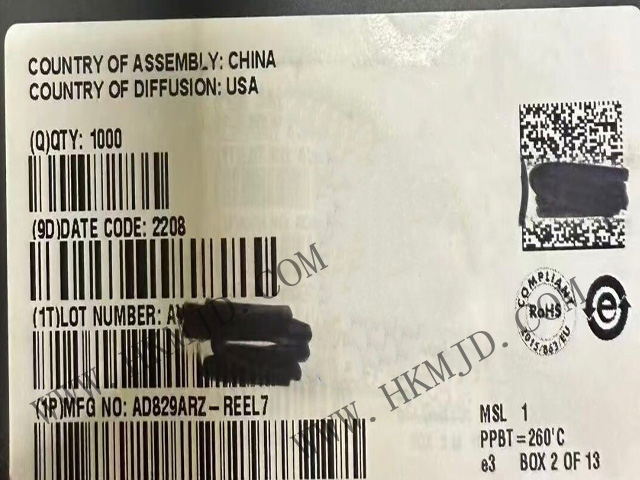

For picture reference, please see the specifications
< >

Commodity Model:AD829ARZ

Trade Name:High-Speed Operational Amplifiers

Brand:ADI

Particular Year:22+

Package:SOIC-8

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD829ARZ
Package
SOIC-8
Describe
High-Speed, Low-Noise Video Operational Amplifier, SOIC-8

Product Description

AD829ARZ: High-Speed, Low-Noise Video Operational Amplifier, SOIC-8


Product Details:

Model No.: AD829ARZ

Package: SOIC-8

Type: High-Speed Operational Amplifier


Overview:

The AD829ARZ is a low-noise (1.7 nV/√Hz), high-speed operational amplifier with a custom compensation feature that allows the user to set gain over a range of ±1 to ±20 while maintaining a bandwidth of over 50 MHz. With differential phase and differential gain errors of 0.04° and 0.02% at 3.58 MHz and 4.43 MHz, respectively, the AD829ARZ is particularly well suited for professional video applications as it can drive inverted terminated 50 Ω or 75 Ω cables, and requires only 5 mA of supply current to achieve an uncompensated slew rate of 230 V/µs with a 120 MHz gain bandwidth product.


AD829ARZ Features:

High speed

Bandwidth: 120 MHz (G = -1)

Slew rate: 230 V/µs

0.1% build-up time: 90 ns

Especially suited for video applications

Differential gain error: 0.02%

Differential phase error: 0.04°

Low noise

Input noise: 1.7 nV/√Hz

Input noise: 1.5 pA/√HZ

Excellent DC accuracy

Input Out-of-phase voltage: 1 mV maximum (over the entire temperature range)

Input out-of-phase drift: 0.3 mV/°C

Flexible operation

Nominal operating voltage: ±5 V to ±15 V

Output swing: ±3 V (150Ω load)

External compensation (gain range: 1 to 20)

Supply current: 5 mA
