The ADA4807-2ACPZ is a low-power, low-noise, rail-to-rail voltage feedback amplifier with ultra-high performance. The ADA4807-2ACPZ operates over a wide voltage range, supporting both dual-supply configurations from ±1.5 V to ±5 V and single-supply configurations from 3 V to 10 V. It includes a disable feature, which reduces the typical static supply current to 2.4 μA when enabled. Among similar high-speed rail-to-rail amplifiers in the industry, it has low input noise (3.1 nV/√Hz and 0.7 pA/√Hz) and a static supply current of only 1 mA or less, making it an ideal choice for various applications—from battery-powered portable instruments to high-density systems requiring low power consumption.

For systems using high dynamic range signals, the output voltage swing is within a 50 mV range of each supply rail; the full rail-to-rail input stage allows the input to reach or even exceed the supply rails.

ADA4807-2ACPZ Product Attributes

Amplifier Type: Voltage Feedback

Number of Circuits: 2

Output Type: Full Swing

Slew Rate: 250 V/µs

-3 dB Bandwidth: 180 MHz

Current - Input Bias: 1.2 µA

Voltage - Input Offset: 140 µV

Current - Supply: 1 mA (x2 channels)

Current - Output/Channel: 80 mA

Voltage - Span (Minimum): 2.7 V

Voltage - Span (Maximum): 11 V

Operating Temperature: -40°C to 125°C

Mounting Type: Surface Mount

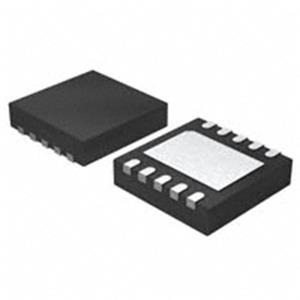

Package/Case: 10-VFDFN Bare Pad, CSP

Supplier device package: 10-LFCSP-WD (3x3)

ADA4807-2ACPZ Applications

High-resolution analogue-to-digital converter (ADC) driver

Portable and battery-powered instruments and systems

High-density data acquisition systems

Audio signal processing

Active filters
