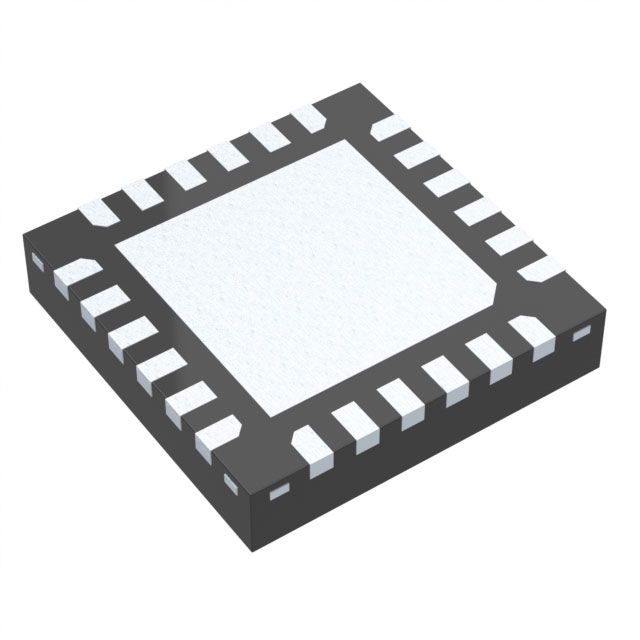

Commodity Model:HMC305SLP4E

Trade Name:Attenuator

Brand:ADI

Particular Year:25+

Package:QFN-24

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC305SLP4E
Package
QFN-24
Describe
Digital tunable high-pass and low-pass filters from 2 GHz to 18 GHz

Product Description

The HMC305SLP4E is a broadband 5-bit forward-controlled silicon-based digital attenuator packaged in a CMOS-compatible serial-to-parallel driver configuration, featuring a leadless QFN 4x4 mm SMT package. The attenuator covers a frequency range from 0.4 to 6 GHz, with typical insertion loss of less than 1.6 dB. The attenuator's bit values are 0.5 dB (LSB), 1 dB, 2 dB, 4 dB, and 8 dB, with a total attenuation of 15.5 dB. The attenuator offers excellent attenuation accuracy, with a typical value of ±0.25 dB, and a third-order intercept point (IIP3) of up to +52 dBm. Each attenuation state is selected via a 5-bit serial control word. Requires a single Vcc bias voltage of +3.3V to +5V.


HMC305SLP4E Features

No glitch state transition

0.5 dB LSB steps up to 15.5 dB

TTL/CMOS-compatible serial data interface

SPI-compatible serial output

Excellent attenuation accuracy: typical value ±0.25 dB

Error

Single +3.3V to 5V power supply

Electrostatic discharge (ESD) rating: Level 2 (2kV HBM)

Direct replacement for HMC305ALP4E


Typical applications

The HMC305SLP4E is suitable for radio frequency (RF) and intermediate frequency (IF) applications:

• Cellular infrastructure

• Wireless infrastructure

• Microwave radio and VSAT

• Test instruments

Associated Products

Model

Brand

Package

Quantity

Describe

HMC624ALP4E

ADI

LFCSP-24

3000

0.1 GHz to 6.0 GHz, 0.5 dB LSB, 6-bit, GaAs digital attenuator

HMC424ALH5

ADI

CLCC-12

3000

GaAs MMIC 6-bit Digital Attenuator, CLCC-12

HMC657LP2E

ADI

TDFN-6

3000

DC to 25 GHz, Fixed Passive SMT Attenuator, TDFN-6

HMC629ALP4E

ADI

VFQFN-24

3000

Wideband 4-bit GaAs IC Digital Attenuator, VFQFN-24

QAT-30

Mini-Circuits

MCLP

2000

50Ω 1W 30dB 50GHz Fixed Attenuator

QAT-4

Mini-Circuits

MCLP

2000

50Ω 1.7W 4dB 50GHz Fixed Attenuator

MAAD-011045-TR0500

MACOM

VFQFN-20

3500

DC - 18GHz, 0.5 dB LSB, 6-Bit Digital Attenuator

ADRF5474BCZ

ADI

CHIP-16

3000

10MHz to 60GHz, 2dB LSB, 4-Bit, Die on Carrier, Silicon Digital Attenuator

ADRF5473BCZ

ADI

CHIP-18

3000

100MHz to 40GHz 0.5 dB LSB, 6-Bit, Die on Carrier, Silicon Digital Attenuator

HMC539ALP3E

ADI

QFN-16

7764

0.25 dB LSB GaAs MMIC 5-bit Digital Positive Control Attenuator, DC - 4 GHz
