IKB40N65ES5ATMA1 650V Medium speed switch IGBT is the link between L5 and H5 and the address application for switching between 10kHz and 40kHz. The IGBT has high efficiency, faster time-to-market, reduced circuit design complexity and optimized PCB bill of material costs.

Product Specifications:

IGBT type: trench type field cut-off

Voltage-emitter breakdown (Max) : 650 V

Current - Collector (Ic) (Max.) : 79 A

Current-collector pulse (Icm) : 160 A

Vce(on) (Max.) : 1.74V @ 15V, 40A for different Vge and Ic

Power - Max. : 230 W

Switching power: 860µJ (on), 400µJ (off)

Input type: Standard

Grid charge: 95 nC

Td (On/off) value at 25°C: 19ns/130ns

Test conditions: 400V, 40A, 10 ohms, 15V

Reverse recovery time (trr) : 73 ns

Operating temperature: -40°C ~ 175°C (TJ)

Mounting type: Surface mount type

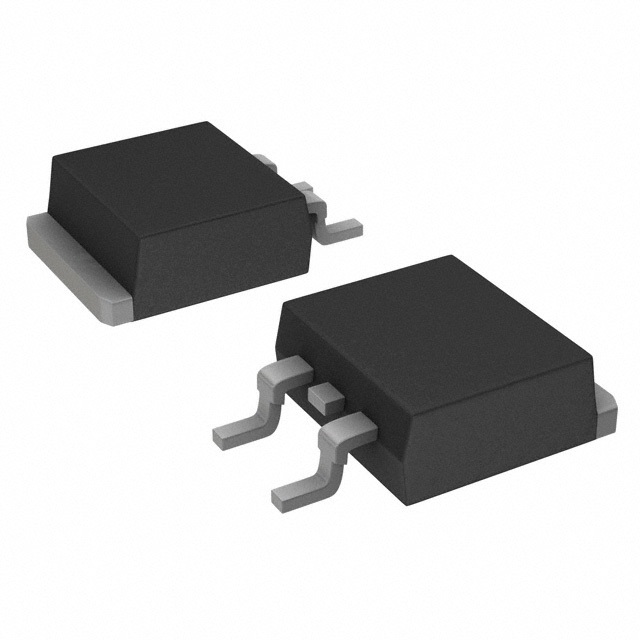

Package/housing: TO-263-3, D²Pak (2 leads + connectors), TO-263AB

Supplier device package: PG-TO263-3

Basic product number: IKB40N65
