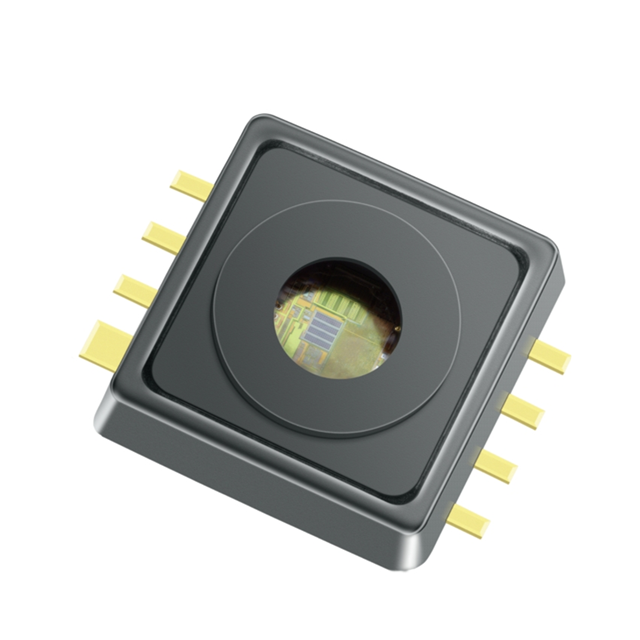

The KP229F3519 is a small analog MAP pressure sensor based on the principle of capacitance. Surface micro-machining is carried out using BiCMOS technology and integrated with signal conditioning. Convert the pressure (50 kPa to 400 kPa) to an analog output (0.51 V to 4.55 V). "Green" SMD casing. It is highly suitable for various air pressures, high-end automotive, industrial and consumer applications. The following are its core features:

High-precision pressure sensing

Proportional analog output

Wide temperature range (-40°C to 140°C

Disconnection detection

"Clamp"

"Green" 8-pin SMD housing

Main specifications

Product: KP229F3519

Application: Plate mounting

Pressure type: Absolute

Working pressure: 7.25PSI to 58.02PSI (50kPa to 400kPa)

Output type: Analog voltage

Output: 0.5V to 4.55V

Accuracy: ±0.580PSI (±4kPa)

Voltage - Power supply: 4.5V to 5.5V

Port size: -

Port style: No port

Features: Amplified output, temperature compensation

Termination style: SMD (SMT) mounting

Maximum pressure: -

Operating temperature: -40°C to 140°C

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Packaging/Housing: DSF-8

Applicable scenarios

Power management for industrial equipment

Battery protection for consumer electronic products

Battery status monitoring in smart wearable devices
