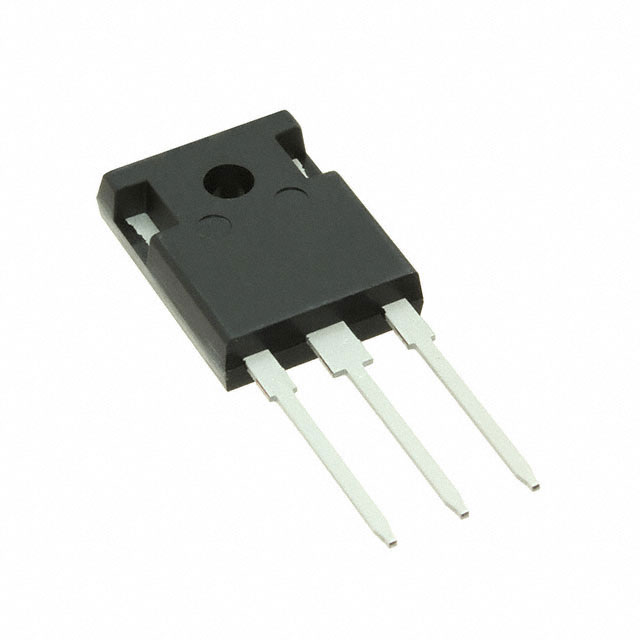

IKQ140N120CH7XKSA1 is a 1200 V, 140 A IGBT with anti-parallel diode in TO-247-3 package.

Summary of Features

Excellent VCEsat behavior thanks to the famous Infineon TRENCHSTOP™ technology

Fast switching behavior with low EMI emissions

Optimized diode for target applications, very soft and low Qrr

Low gate resistor selection possible (down to 5 Ω) whilst maintaining excellent switching behavior

Offering Tj(max) of 175 °C

Benefits

Technology with the highest power density with up to 140 A rating

Optimized performance in application conditions

Lowest conduction losses

Lowest switching losses

Humidity robustness under harsh environment

Improved EMI performance

Highest power density with heat dissipation capability of TO-247PLUS vs TO-247

Applications

EV charging

Uninterruptible power supplies (UPS)
