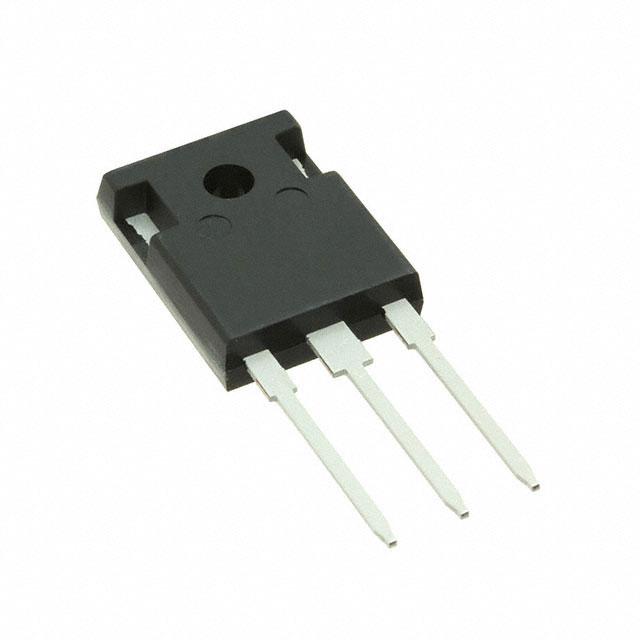

IKQ75N120CS6XKSA1 is a 1200 V, 75 A IGBT with anti-parallel diode in TO-247-3 package.

Summary of Features

High efficiency in hard switching and resonant topologies

Low saturation voltage if 1.85 V combined with low switching losses

Easy paralleling capability due to positive temperature coefficient in VCEsat

Low EMI

Low Gate Charge QG

Very soft, fast recovery anti-parallel diode

High ruggedness, temperature stable behaviour

Very tight parameter distribution

High power density and low thermal resistance of the TO-247PLUS package

Benefits

Lowest losses on IGBT, high system efficiency for higher power output

Fast and easy replacement of predecessor H3 technology

High device reliability and lifetime expectancy

Highest current of 75 A 1200 V IGBT with 75 A diode in TO-247 footprint

Lower thermal resistance Rth(jh) of the TO-247PLUS benefits to ~15% better heat dissipation and extended lifetime expectancy of IGBT

Applications

1-phase string inverter solutions

Uninterruptible power supplies (UPS)
