Trade Name:Ambient light sensor
Brand:Renesas
Particular Year:25+
Package:ODFN-6
Delivery Date:New and original
Stock: 3000pcs
The ISL76671AROZ is a low-cost, photo-voltage silicon optical sensor that integrates a photodiode array, a nonlinear current amplifier, and a micro-power operational amplifier on a single single-chip IC. Similar to the human eye, the peak sensitivity of a photodiode array is 550nm, with a wavelength range of 400nm to 600nm, capable of blocking both ultraviolet and infrared light. The input brightness range is from 0.01 lux to 100 lux.
Main specifications
Type: Environment
Wavelength: 550nm
Proximity detection: None
Output type: Voltage
Voltage - Power supply: 1.8V to 3V
Operating temperature: -40°C to 105°C
Installation type: Surface mount type

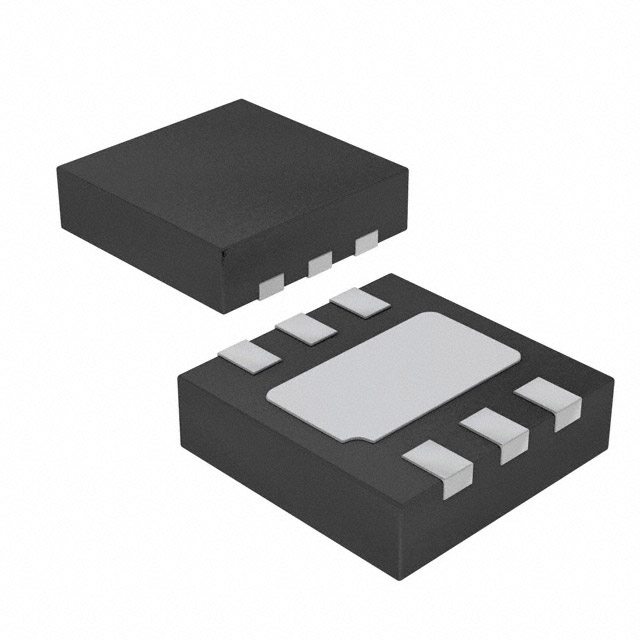

Package: 6-ODFN (2.1x2)
The integrated nonlinear current amplifier enhances the photodiode signal and converts it into a square root output format, expanding the dynamic range while maintaining excellent sensitivity in dim light conditions. Therefore, when installed behind a large number of smoked frames used around a display or behind a mirror, this component is highly suitable for measuring incident daylight.
The built-in 1μA operational amplifier provides the ISL76671AROZ with the advantage of output voltage drive, making it suitable for heavier loads that can directly drive ADCs. The ISL76671AROZ adopts an ultra-compact 2mm x 2.1mm ODFN plastic surface mount package, and its design complies with the level 2 standard of AEC-Q100.
Application field
Display backlight control - central information display and instrument
Anti-glare mirror system - specified for operation behind the baffle installation
