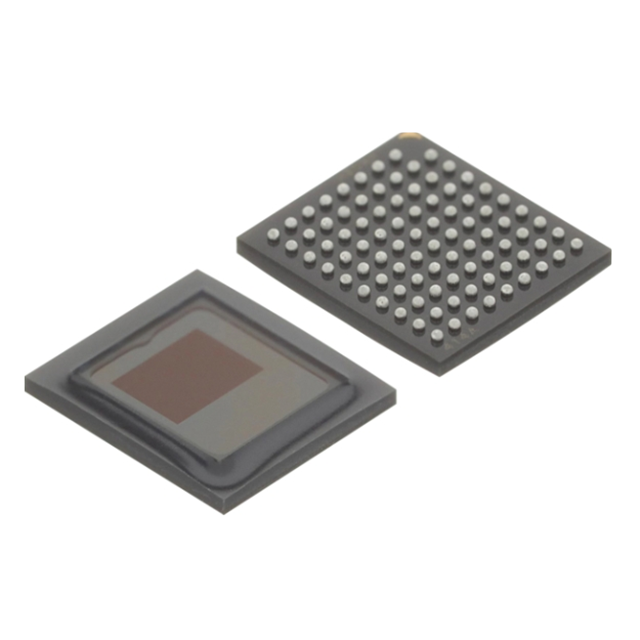

The AS0149ATSC00XUEA1-DPBR2 CMOS digital image sensor is designed for automotive applications and features a 1312Hx986V active pixel array. This sensor provides output formats, including RGB888, YUV422, BT.656 or BT.601. With the help of the rolling shutter reading, the AS0149ATSC00XUEA1-DPBR2 sensor can capture color images in linear or high dynamic range modes.

The AS0149ATSC00XUEA1-DPBR2 features 3µm BSI pixels and a capture capability of up to 120dB HDR, thus achieving outstanding performance in low-light and high dynamic range scenarios. This sensor supports various functions such as window, video and single-frame modes. This device can be programmed through a simple two-wire serial interface and supports MIPI CSI-2 and parallel output interfaces. In addition, the AS0149ATSC00XUEA1-DPBR2 sensor also features advanced processing characteristics such as color correction, automatic white balance, distortion correction, Overlay, ALTM (Adaptive Local Modulation Mapping), and overexposure HDR mode.

Main features

High-performance 3.0μm BSI pixels with overexposure HDR mode

Combined HDR raw output, up to 20 bits (>120dB)

RAW bypass function

Automatic exposure, automatic white balance, distortion correction and overlay

Adaptive Local Tone Mapping (ALTM

Optional automatic or user-controlled black level control is available

Target application

Automotive perspective

Automotive ADAS

Rearview camera (RVC

Camera Image Changing System (CMS

Surround-view camera (SVC
