Trade Name:Image sensor
Brand:ON
Particular Year:25+
Package:IBGA-89
Delivery Date:New and original
Stock: 2500pcs

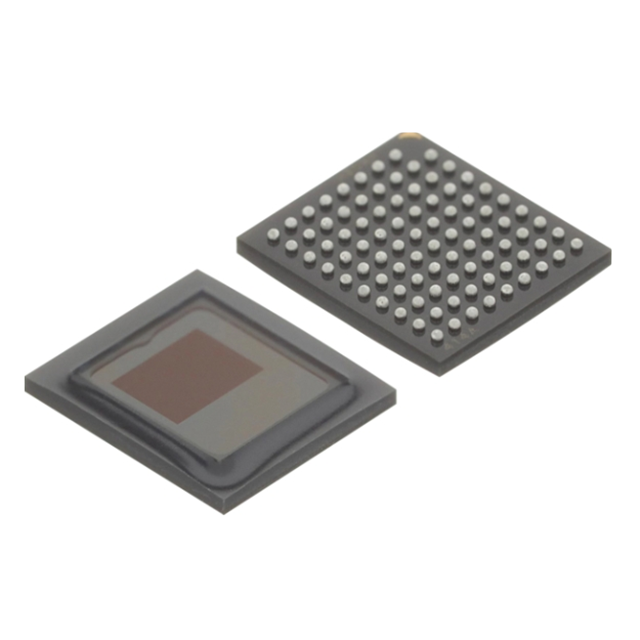

AS0149ATSC00XUEA0-DPBR is a 1/4-inch single-chip CMOS digital image sensor SOC. It uses a 1312 H x 986 V active pixel array to capture high-quality color images and outputs them in RGB888, YUV422, BT.656 or BT.601 formats. This advanced automotive sensor can capture images in a linear or high dynamic range and features a rolling shutter reading.
AS0149ATSC00XUEA0-DPBR mainly has the following features:
High-performance 3.0μm BSI pixels with overexposure HDR mode
Combined HDR raw output, up to 20 bits (>120dB)
RAW bypass function
Automatic exposure, automatic white balance, distortion correction and overlay
Adaptive Local Tone Mapping (ALTM
Optional automatic or user-controlled black level control is available
The AS0149ATSC00XUEA0-DPBR has been optimized for low-light and challenging high dynamic range scene performance, featuring 3 μm BSI pixels and sensor HDR capture capability up to 120 dB. This sensor includes flexible functions such as windowing, video and single-frame modes. The AS0149ATSC00XUEA0-DPBR can be programmed through a simple two-wire serial interface and supports MIPI CSI−2 and parallel output interfaces. The AS0149 is a complete on-chip camera that performs complex processing functions, including color and gamma correction, automatic white balance, distortion correction, overlay, ALTM (Adaptive Local Tone Mapping), and supports Super Exposure HDR mode.
Application field
Automotive perspective
Automotive ADAS
Rearview camera (RVC
Camera Image Changing System (CMS
Surround-view camera (SVC
Model
Brand
Package
Quantity
Describe
ON
IBGA-89
2000
Hayabusa CMOS Image Sensor SOC, 1.3 MP, 1/4", RGB, Rolling Shutter
ON
ODCSP-83
2000
1/2.6-inch 2.3Mp CMOS digital image sensor with global shutter
ON
IBGA-89
2500
Hayabusa CMOS Image Sensor SOC, 1.3 MP, 1/4", RGB, Rolling Shutter
ON
mPLCC48
5000
CMOS Image Sensor, 2.1 MP, 1/2.7" Lower Cost,Both RGB and RGBIR Version.
