Trade Name:Image sensor
Brand:ON
Particular Year:25+
Package:ODCSP62
Delivery Date:New and original
Stock: 2000pcs

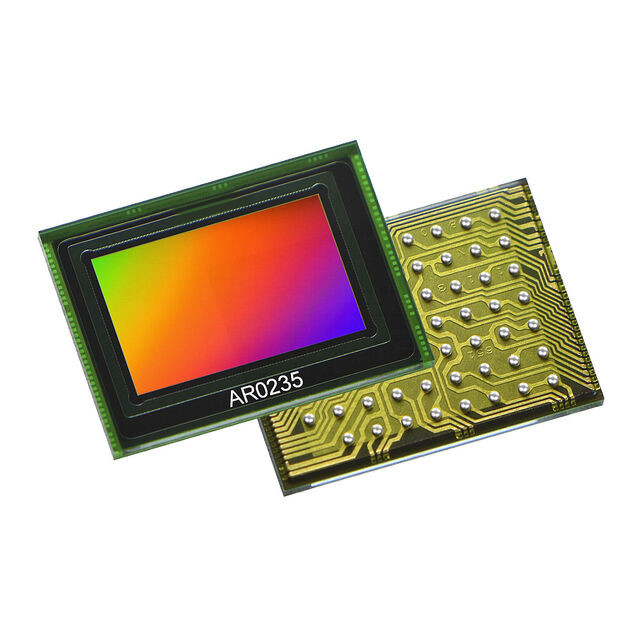

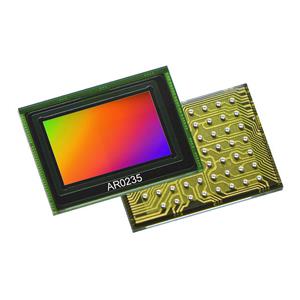

The AR0235CSSM00SMD20-RC1, part of the ON Semiconductor Hyperlux SG product family, is a 1/2.8-inch 2.3MP CMOS digital image sensor with an active pixel array of 1920 (H) x 1200 (V). The AR0235CSSM00SMD20-RC1 adopts a new and innovative global shutter pixel design. After optimization, it can accurately and quickly capture moving scenes at full resolution of 120 frames per second. This sensor can generate clear and low-noise images in both low-light and bright scenes. It includes complex camera functions such as auto exposure control, Windows, row skipping mode, column skipping mode, pixel merging, as well as video and single frame modes. It can be programmed through a simple two-wire serial interface.
The AR0235CSSM00SMD20-RC1 generates extremely clear and sharp digital images with industry-leading global shutter efficiency. Its ability to capture continuous video and single frames makes it the perfect choice for a wide range of applications, including scanning, autonomous driving, AR/VR, monitoring, and industrial quality control.
Main characteristics
Outstanding low-light and infrared performance
8-bit / 10-bit MIPI, 1/2/4-channel MIPI
Automatic Black Level Calibration (ABLC)
Horizontal and vertical mirroring, windowing and pixel merging
5 x 5 statistical engine for on-chip automatic exposure control of any programmable region of interest (ROI)
Flexibly control the row and column jump modes
On-chip trigger mode for synchronization
Built-in flash control
Two on-chip phase-locked loops (PLL)
Context switching
1056 bytes one-time Programmable Memory (OTPM)
Simple dual-wire fast mode serial interface
The application of AR0235CSSM00SMD20-RC1
Barcode scanner
Factory automation
Autonomous Mobile Robot (AMR
Machine vision
3D scanning
Biometric recognition
