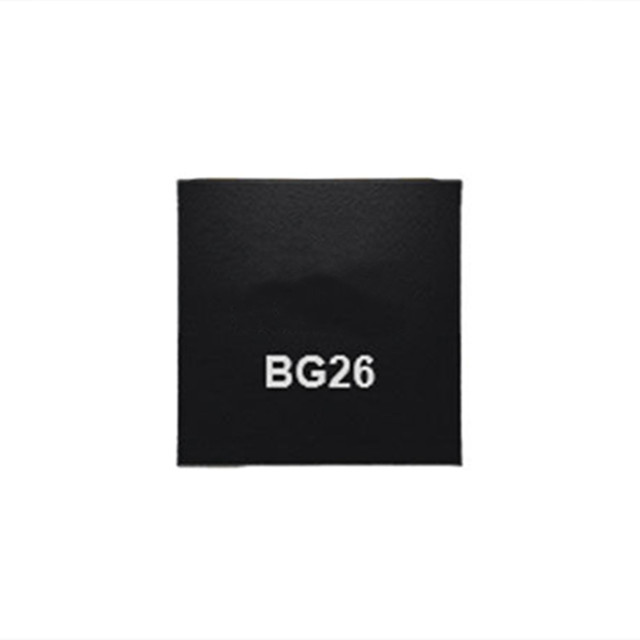

EFR32BG26B510F3200IM48-B is a Bluetooth wireless SoC launched by SILICON. It is based on the ARM Cortex-M33 core, with a main frequency of up to 78 MHz, and is equipped with 3200 kB of flash memory and 512 kB of RAM. Supports Bluetooth 5.4, Bluetooth mesh network and proprietary protocols, suitable for low-power Internet of Things devices.

The EFR32BG26B510F3200IM48-B low-power SoC is mainly applied in smart sockets, sensors, LED lighting equipment and iot terminals with high battery life requirements, balancing performance and energy efficiency. ‌

Technical specifications

Type: TxRx + MCU

Radio Frequency series/standards: 802.15.4, Bluetooth

Protocol: Bluetooth v5.3

Modulation: 2FSK, 2GFSK, DSSS, GMSK, MSK, O-QPSK

Frequency: -

Data rate (maximum) : 2Mbps

Power - Output: 10dBm

Sensitivity: -105.9dBm

Storage capacity: 3.125MB flash memory, 512kB RAM

Serial interfaces: ADC, GPIO, I2C, I2S, IrDA, JTAG, PWM, SPI, UART, USART

GPIO: 28

Voltage - Power supply: 1.71V to 3.8V

Current - Reception: 5.4mA

Current - transmission: 5.9mA to 152.7mA

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

Packaging/Housing: 48-QFN
