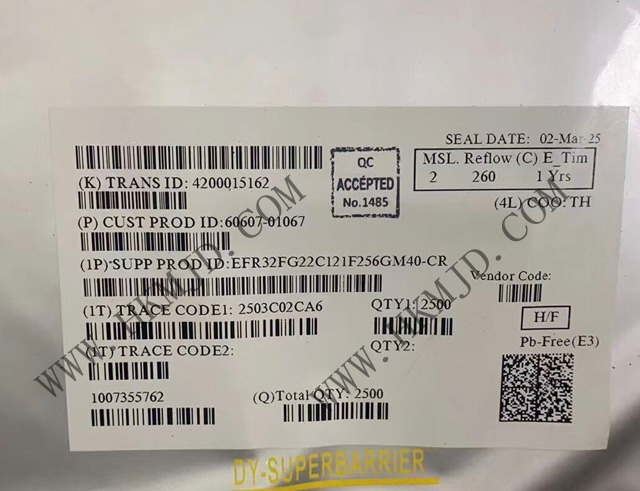

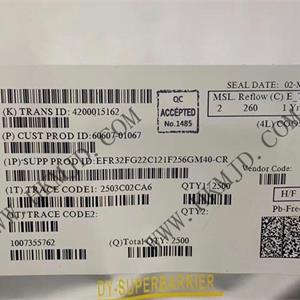

For picture reference, please see the specifications
< >

Commodity Model:EFR32FG22C121F256GM40-CR

Trade Name:Embedded - System-on-Chip (SoC)

Brand:SILICON

Particular Year:25+

Package:QFN40

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
SILICON
Model
EFR32FG22C121F256GM40-CR
Package
QFN40
Describe
Proprietary 2.4 GHz EFR32FG22 SoCs (Series 2)

Product Description

The EFR32FG22C121F256GM40-CR is a high-performance 2.4GHz wireless system-on-chip (SoC) manufactured by Silicon Labs. This chip is specifically designed for energy-efficient proprietary protocol networks in IoT devices and is suitable for a wide range of applications.


EFR32FG22C121F256GM40-CR Product Features

Processor: 32-bit ARM Cortex-M33 core, operating at a maximum frequency of 38.4 MHz

Memory Capacity: 256KB flash and 32KB RAM

Wireless Performance:

Sensitivity: -102.3 dBm at 250 kbps O-QPSK DSSS, -98.9 dBm at 1 Mbit/s GFSK

Maximum Transmit Power: 6 dBm

Receive current: 2.5 mA, transmit current at 0 dBm output power: 3.4 mA

Low-power design:

Active mode (EM0) current: 26 μA/MHz

Deep sleep mode (EM2) current: 1.20 μA

EM4 mode current: 0.17 μA

Modulation format: Supports 2(G)FSK, OQPSK DSSS, (G)MSK

Operating range:

Operating voltage: 1.71 V to 3.8 V

Operating temperature: -40°C to 85°C

Package type: QFN40, 5 mm x 5 mm x 0.85 mm

Security Features:

Secure boot with Root of Trust and Secure Loader (RTSL).

Hardware encryption acceleration, supporting AES128/256, SHA-1, SHA-2 (up to 256 bits), ECC (up to 256 bits), ECDSA, and ECDH

True random number generator compliant with NIST SP800-90 and AIS-31 standards (TRNG)

ARM® TrustZone®

Secure debugging with lock/unlock functionality


Application Areas

The EFR32FG22C121F256GM40-CR is widely used in the following areas:

IoT devices: such as electronic shelf labels, home and building automation and security.

Industrial automation: suitable for industrial sensors and control devices.

Commercial and retail lighting and sensing: used for smart lighting and environmental monitoring.
