Service Telephone:86-755-83294757
Trade Name:Analogue Switch IC
Brand:ADI
Particular Year:21+
Package:TSSOP16
Delivery Date:New and Original
Stock: 5000pcs

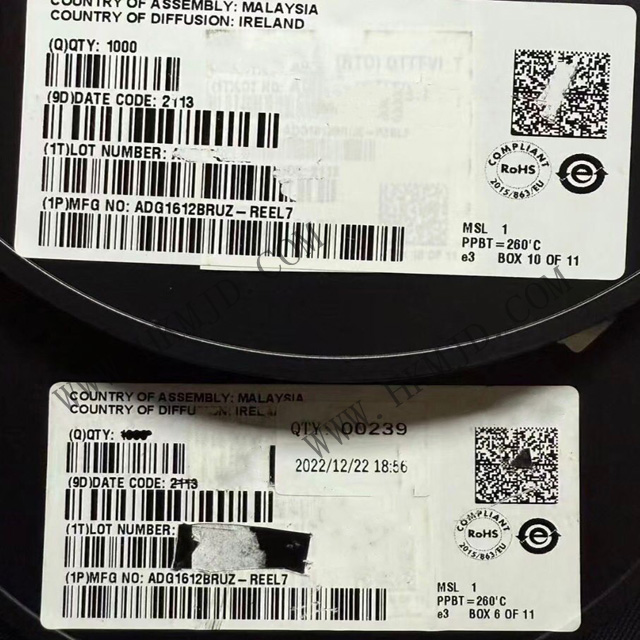

The ADG1612BRUZ is a four-channel, independently controlled, single-pole single-throw (SPST-NO) analogue switch introduced by ADI, packaged in a 16-pin TSSOP package. with a typical on-resistance of just 1 Ω (0.2 Ω flatness), and operates on a dual supply of ±3.3 V to ±8 V or a single supply of 3.3 V to 16 V, enabling rail-to-rail signal switching.
ADG1612BRUZ Key Features
Four independent SPST, normally open (NO)
1 Ω typical on-resistance (at 5 V)
Conduction resistance flatness of 0.2 Ω ensures low distortion
Fast switching: tON 156 ns, tOFF 45 ns
3 V logic-compatible inputs, no additional VL power supply required
Low charge injection, low leakage current (±1 nA typical)
Wide operating temperature range: -40 °C to +125 °C
Package: 16-TSSOP (4.4 mm × 5 mm)
ADG1612BRUZ Product Features
Maximum on-resistance across the entire temperature range: 1.6 Ω
Extremely low distortion: THD + N = 0.007%
3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V
No VL logic power supply required.
Ultra-low power consumption: <16 nW
ADG1612BRUZ Applications
Communication systems
Medical systems
Audio signal routing
Video signal routing
Automatic test equipment
Data acquisition systems
Battery-powered systems
Sample-and-hold systems
Relay replacement solutions
Model
Brand
Package
Quantity
Describe
ADI
MSOP-8
3000
1 Ω on-resistance, ±15 V/+12 V/±5 V, iCMOS single-pole single-throw switch
ADI
LFCSP-24
3000
Four-channel SPST switch with serial control, high voltage anti-latch type
ADI
LFCSP-16
2500
Bidirectional fault protection and detection, 10 Ω RON, four-channel single-pole single-throw switch
ADI
LFCSP-16
3000
Fault protection and detection, 10 Ω RON, four-channel single-pole single-throw switch
ADI
LFCSP-16
3000
Low capacitance, low charge injection, ±15 V/+12 V iCMOS, four-channel single-pole single-throw switch
