The ADG5436BRUZ is a single-chip CMOS device with two independently selectable single-pole double-throw (SPDT) switches. The ADG5436BRUZ is suitable for relay alternatives, automatic test equipment, data acquisition, instrumentation, avionics, audio and video switches, communication systems ‌.

Technical specification

Product: ADG5436BRUZ

Number of channels: 2 channels

Configuration: 2 x SPDT

On-resistance - Max. : 11 Ohms

Supply voltage - Min: 9 V

Power supply voltage - Max: 40 V

Minimum dual supply voltage: +/ -9 V

Maximum dual supply voltage: +/ -22 V

Run time - Max. : 230 ns

Idle time - Maximum value: 160 ns

Operating temperature: -40 °C to + 125°C

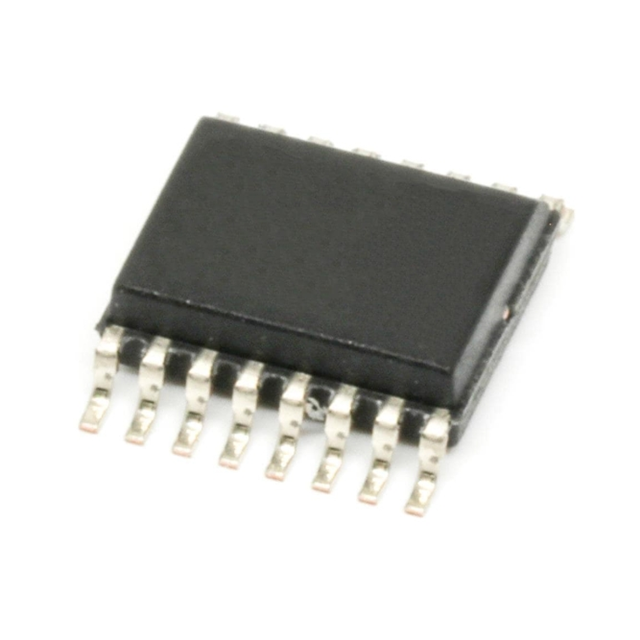

Package/housing: TSOP-16

Series: ADG5436

Height: 1.05mm

Length: 5 mm

Width: 4.4mm

Pd-power dissipation: 1.1mW

Product type: Analog Switch ICs

Power supply current - Max. : 55 uA

Power Supply type: Single Supply, Dual Supply

Switching DC: 122 mA

Unit weight: 173 mg
