Trade Name:Clock Generator
Brand:Renesas
Particular Year:25+
Package:24-VFQFPN
Delivery Date:New and original
Stock: 2000pcs
The 9FGL0251DKILF device is a 2-channel output 3.3V PCIe Gen 1-6 clock generator. Each output has a dedicated OE# pin that supports PCIe CLKREQ# functionality. In addition to expansion, this device also supports two different spread spectrum levels. The 9FGL0251DKILF supports the PCIe Gen 1-6 Universal Clock Architecture (CC), PCIe Independent Reference No Expansion (SRNS), and Independent Reference Independent Expansion (SRIS) clock architectures.
The following are the core features of 9FGL0251DKILF:
Conforming to the PCIe Gen 1-6 standard
Supports PCIe SRIS and SRNS clocks
The integrated termination of the 100ω and 85ω systems can save 4 resistors for each output
Pin options include SRNS 0%, CC 0%, and CC/SRIS 0.5% extensions
SMBus is available with an optional CC/SRIS -0.25% distribution
One 3.3V LVCMOS REF output, supporting local area Network Wake-up (WOL)
It is easy to couple with other logic series. Please refer to the application note AN-891.

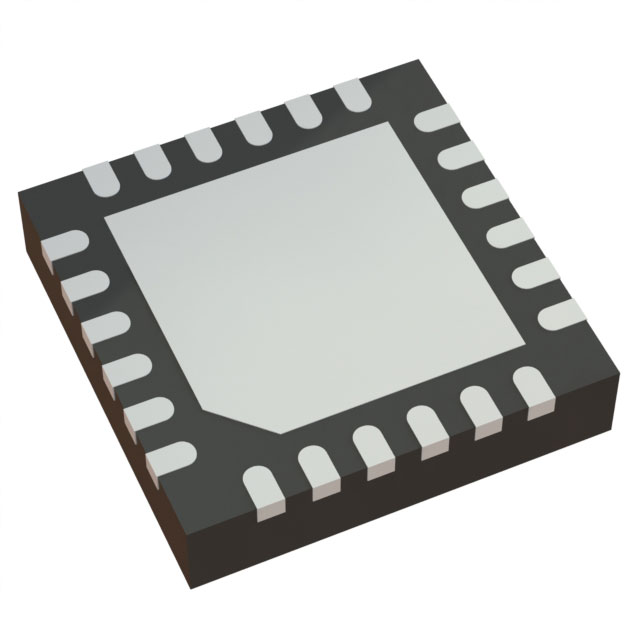

Space-saving 4mm × 4mm 24-VFQFPN
Typical applications
Server/High-performance computing
nVME memory
Network
Accelerator
Industrial control
Model
Brand
Package
Quantity
Describe
TI
VQFN-24
2500
An ultra-low-power clock generator with one PLL and four differential outputs
