9FGV0841ANDG2 is a clock generator launched by (Renesas) suitable for PCIe GEN1-4 applications. It integrates output termination and provides Zo=100 ohms. The 9FGV0841ANDG2 features 8 clock management output enables and, in addition to expansion, supports 2 different spread spectrum levels. The main features include:

Conforming to the PCIe GEN1-4 standard

The integrated terminal provides 100ω differential Zo: reducing the number of components and circuit board space

1.8V operating voltage: Reduces power consumption

The output can be powered by any voltage ranging from 1.05V to 1.8V: maximizing power savings

OE# pin: Supports DIF power management

LP-HCSL differential clock output: Reduces power consumption and circuit board space

Programmable slew rate for each output: allows tuning for various line lengths

Programmable output amplitude: Allows tuning for various application environments

The DIF output is blocked until the PLL is locked: a clean system starts

Optional 0%, -0.25% or -0.5% expansion on DIF output: Reduces EMI

External 25MHz crystal; Supports tight ppm, with a synthesis error of 0ppm

Configuration can be accomplished through the bundling pin: device control does not require an SMBus interface

3.3V compatible with SMBus interface supports traditional controllers

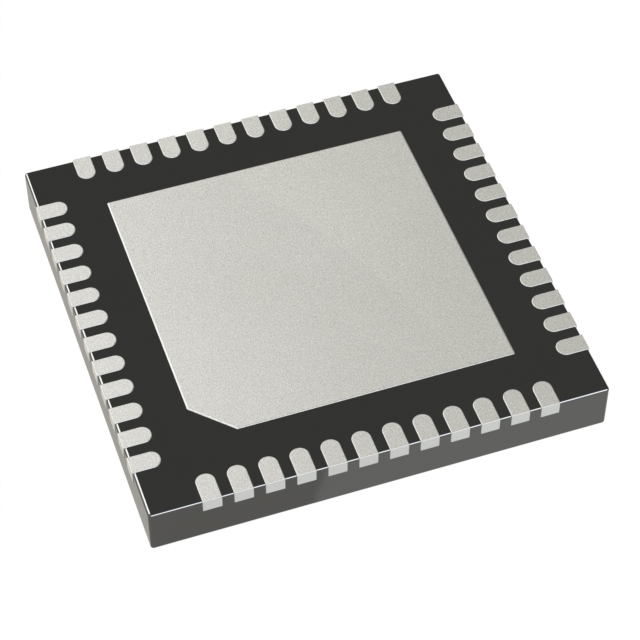

Space-saving 6 × 6mm 48-VFQFPN; The smallest circuit board space

Optional SMBus address: Multiple devices can easily share one SMBus network segment

Offer AEC-Q100 certified Grade 2 (-40°C to +105°C) version (wettable side wing package)

Typical applications

PCIe GEN1-4 clock generation for the adapter card

Memory

Network

JBOD

Communication

Access point
