The 9FGV1004C240NBGI device belongs to the PhiClock programmable clock generator series launched by (Renesas). The 9FGV1004C240NBGI provides one copy each of two integer-related frequencies, two copies of decimal or spread spectrum frequencies, and two copies of crystal oscillator reference inputs. Two selection pins support the hardware selection of the required configuration, or two I and C bits support the software selection of the required configuration. When working in I2C mode, users can set any one of the four OTP configurations as the default configuration. There are four unique IC addresses available, allowing for easy IC access to multiple components.

In addition, the 9FGV1004C240NBGI also features the following characteristics:

Conforming to the PCIe gen 1-4 standard

Typical phase jitter of 267fs RMS at 156.25 MHz(12 khz - 20 MHz)

Four programmable output pairs plus two LVCMOS REF outputs

Each configuration consists of 2 integers and 1 decimal or spread spectrum output

1 MHz - 325 MHz integer output (LVDS or LP-HCSL)

1 MHz - 200 MHz integer output (LVCMOS

1.8V to 3.3V kernel VDD

Each programmable output pair is an independent 1.8V to 3.3V VDDO

Supports HCSL, LVDS and LVCMOS I/O standards

Support AC-coupled LVPECL and CML logic - see AN-891

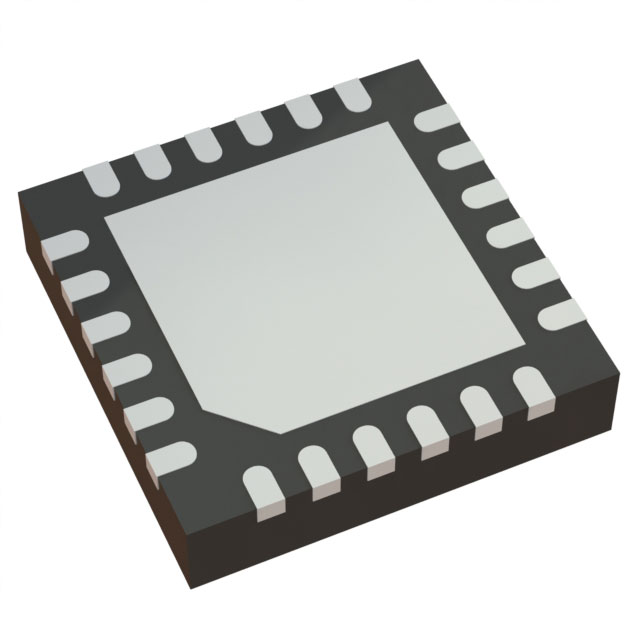

4 × 4 mm 24-VFQFPN package, with an integrated 50MHz crystal oscillator option

Typical applications

High-performance Computing (HPC

eSSD solid-state drive

10G/25G/100G Ethernet

Optical fiber module

Data center accelerator
