The RC21211A000GNA is a high-performance programmable clock generator that supports automotive applications and features additional diagnostic functions tailored to the high reliability requirements of automotive applications. The RC21211A000GNA clock generator complies with ISO 9001 and AEC-Q100 standards. It can operate within a temperature range of -40 °C to 105 °C (equivalent to Class 2) and can provide support for the Production Parts Approval Process (PPAP).

RC21211A000GNA mainly has the following functions:

169fs RMS phase jitter (12kHz to 20MHz, 156.25MHz)

PCIe® Gen6 Common Mode Clock (CC) 27fs RMS

Support for PCIe SRIS and SRNS clock modes

1kHz to 650MHz (differential output) and 1kHz to 200MHz (single-ended output)

Supports LVCMOS, LVDS or low-power HCSL(LP-HCSL) output, and can support LVPECL and CML formats through simple AC coupling. Internal integrated termination of LP-HCSL

7 Programmable general-purpose input/output ports (GPIO)

1MHz I2C serial port

Multiple configurations can be stored in the internal one-time programmable (OTP) memory

Operating voltage: 1.8V and/or 3.3V

IATF 16949 Production support

12 differential outputs or 24 single-ended outputs

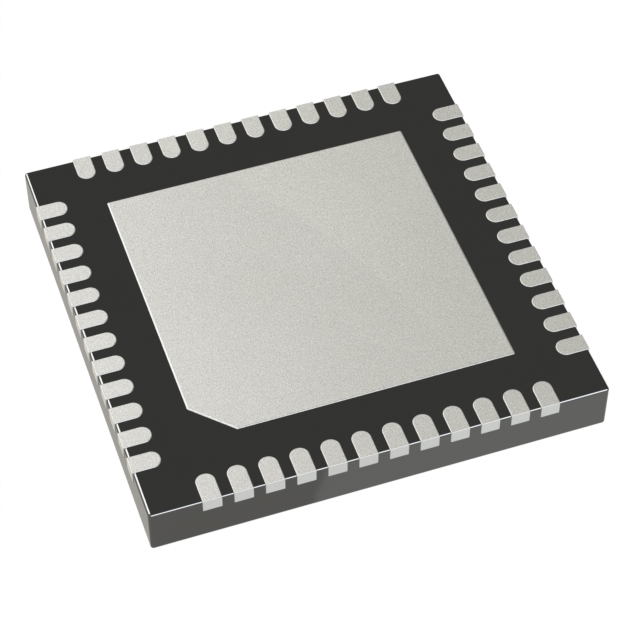

Package: 6mm x 6mm x 0.75mm, 48-QFN package

Application scenarios

▪ Infotainment system

▪ Gateway

▪ Domain Controller

▪ Regional Controller
