The 8V41NS0412NLGI is a flexible clock generator with four output dividers: three integer dividers and one integer divider or fractional divider. The main features include:

A total of 12 output channels are provided :11 differential (HCSL) channels, 1 LVCMOS channel, and 3 integer or fractional frequency dividers

The output skew is less than 45ps

Low phase jitter

Integer divider (156.25MHz) : 80fs root mean square phase jitter, 12kHz to 20MHz(typical values)

Fractional frequency divider (212.5MHz) : 133fs RMS phase jitter, 12kHz to 20MHz(typical values)

10.91MHz to 2.5GHz differential output frequency, 250MHz LVCMOS

Flexible input options :10MHz to 50MHz fundamental mode crystals

Reference input ranging from 5MHz to 1GHz

The programmable loop filter at 200kHz can be set through an external capacitor

Support configuration with external IC EEPROM non-volatile memory

The selection configuration can be controlled by using the control input pins without the need for serial port access

The LVCMOS compatible IC serial interface can be accessed separately or together with the control input pins for additional configurations

Ambient operating temperature: -40°C to +85°C

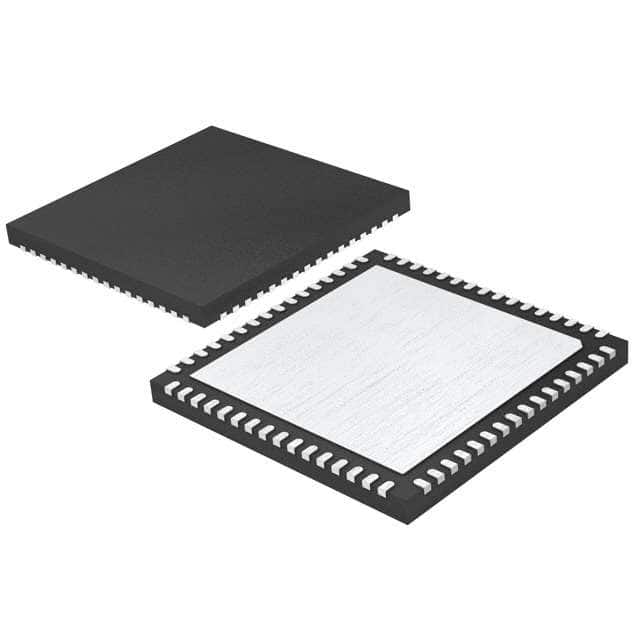

Adopting 64-VFQFN lead-free RoHS packaging (6)

When used in conjunction with an external crystal oscillator, the 8V41NS0412NLGI can generate high-performance timing, making it suitable for the communication, data communication, data center, and artificial intelligence markets. It is particularly suitable for applications that require extremely low phase noise, such as 10, 40, 100, and 400GE. This device is packaged in lead-free 64-VFQFN and is designed to operate within the entire industrial temperature range.

Typical applications

▪ PCI Express clock

▪ 10G/40G/100G/400G Ethernet

▪ Gb Ethernet, Terabit IP switches/routers

▪ CPRI interface

▪ Optical fiber
