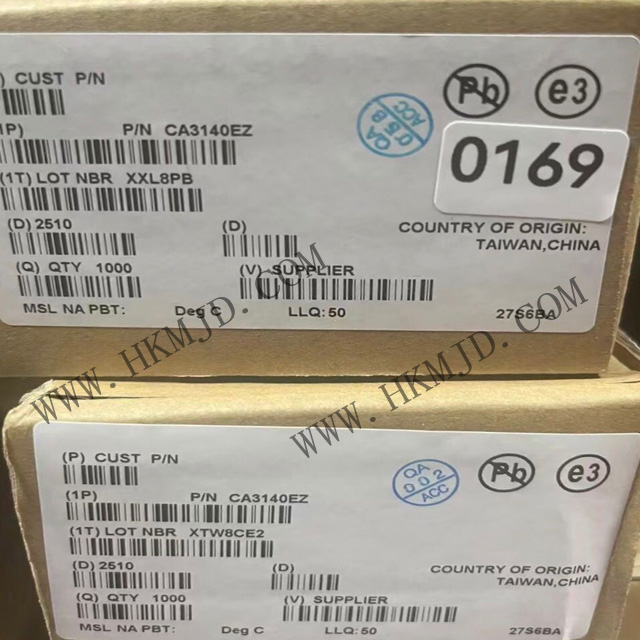

For picture reference, please see the specifications
< >

Commodity Model:CA3140EZ

Trade Name:Operational Amplifiers

Brand:Renesas

Particular Year:25+

Package:PDIP-8

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
CA3140EZ
Package
PDIP-8
Describe
4.5MHz, BiMOS Operational Amplifier, PDIP-8

Product Description

CA3140EZ: 4.5MHz, BiMOS Operational Amplifier with MOSFET Inputs/Bipolar Outputs



Basic Information:

Model No.: CA3140EZ

Package: PDIP-8

Type: Operational Amplifier


Overview:

The CA3140EZ is an integrated circuit operational amplifier that combines the advantages of a high-voltage PMOS transistor and a high-voltage bipolar transistor on a single monolithic chip.

The CA3140EZ BiMOS op-amps use gate-protected MOSFET (PMOS) transistors in the input circuitry to provide very high input impedance, very low input current, and high-speed performance.


CA3140EZ Specifications:

Number of Circuits: 1

Voltage Slew Rate: 9V/µs

Gain Bandwidth Product: 4.5 MHz

Current - Input Bias: 10 pA

Voltage - Input Compensation: 5 mV

Current - Supply: 4mA

Current - Output/Channel: 40 mA

Voltage - Span (Min): 4 V

Voltage - Span (Max): 36 V

Operating Temperature: -55°C ~ 125°C

Mounting Type: Through Hole

Package/Housing: 8-DIP (0.300", 7.62mm)

Supplier Device Package: 8-PDIP


CA3140EZ Product Features:

MOSFET Input Stage

- Very High Input Impedance (ZIN) -1.5T (typical)

- Very low input current (Il) -10pA (typical), 15V

- Wide common-mode input voltage range (VlCR) - can swing at 0.5V below negative supply voltage rail

- Output swing complements input common-mode range
