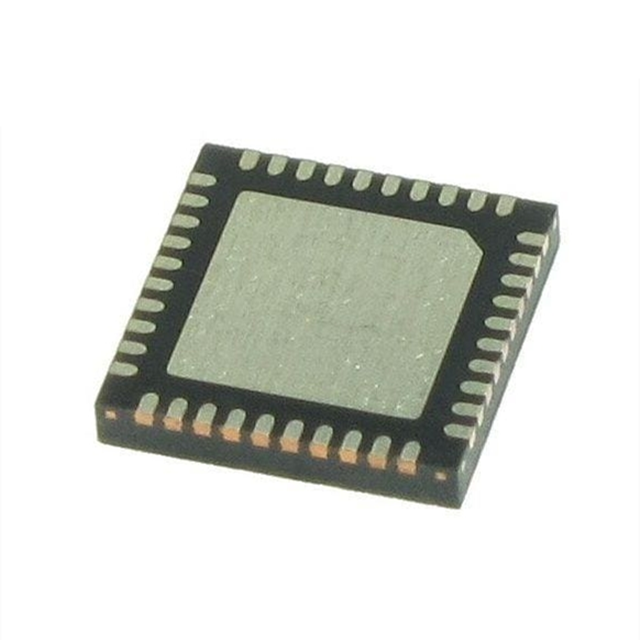

For picture reference, please see the specifications
< >

Commodity Model:8T49N008A-038NLGI

Trade Name:Clock Generator

Brand:Renesas

Particular Year:25+

Package:40-VFQFN

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
8T49N008A-038NLGI
Package
40-VFQFN
Describe
Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 8-Outputs

Product Description

The 8T49N008A-038NLGI is an 8-channel output clock generator with optional LVDS or LVPECL output. 8T49N008A-038NLGI can generate any one of the four frequencies from a single crystal or a reference clock. Four frequencies are selected from the frequency selection table (Table 3) and programmed through the I2C interface. In the user application, four predefined frequencies are selected through two frequency selection pins.


It mainly has the following functional features:

The fourth-generation FemtoClock NG phase-locked loop technology

Eight selectable LVPECL or LVDS outputs are available

The CLK and nCLK input pairs can accept the following differential input levels :LVPECL, LVDS, and HCSL

FemtoClock NG VCO range :1.9GHz - 2.55GHz

Root mean square phase jitter at 156.25MHz (10 KHZ - 1MHz) :0.223ps(typical value)

Full 2.5V or 3.3V power supply

I2C programming interface

Ambient operating temperature: -40°C to 85°C

Lead-free (RoHS 6) packaging is available


Typical applications

The 8T49N008A-038NLGI clock generator is suitable for scenarios such as high-speed digital circuit clock synchronization and communication baseband chip clock distribution, such as 5G base stations and high-speed ADCs, which have high requirements for clock accuracy. ‌
