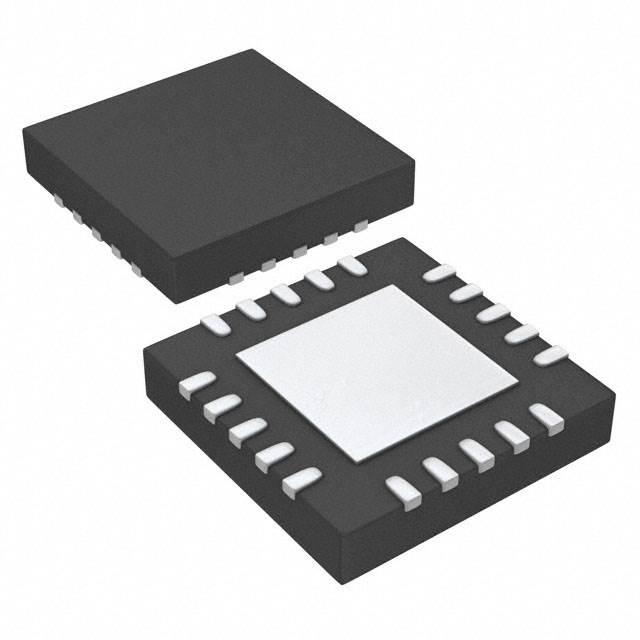

For picture reference, please see the specifications
< >

Commodity Model:5L35021B-000NDGI

Trade Name:Clock Generator

Brand:Renesas

Particular Year:25+

Package:20-QFN

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
5L35021B-000NDGI
Package
20-QFN
Describe
VersaClock 3S Programmable Clock Generator

Product Description

The 5L35021B-000NDGI is a VersaClock programmable clock generator designed for low-power, consumer electronics and high-performance PCI Express applications. This clock generator adopts a three-PLL architecture design. Each PLL can be programmed independently and supports up to five different frequency outputs.


The 5L35021B-000NDGI has the following functions:

Configurable OE pin functions, such as OE, PD#, PPS or DFC control functions

Configurable PLL bandwidth; Minimize jitter peak

PPS: The active power-saving function can save power when the terminal device is powered off

PPB: The performance-power balance function can achieve the lowest power consumption based on the required performance

DFC: The dynamic frequency control function enables users to smoothly and dynamically switch between up to four different frequencies

Spread spectrum clocks reduce electromagnetic interference in the system

I2C interface

The suspension mode only provides the RTC clock when the system enters the low-power operation mode


Typical applications

Embedded computing equipment

Crystal alternatives for consumer applications

Smartdevices, handheld devices and consumer applications


In addition, the 5L35021B-000NDGI features programmable VCO and PLL source selection functions, allowing users to optimize power consumption performance based on application requirements. It also supports a single-ended output and two pairs of differential outputs that support LVCMOS and LPHCSL. The system RTC reference clock supports A low-power 32.768kHz clock with a power consumption of less than 2μA.
