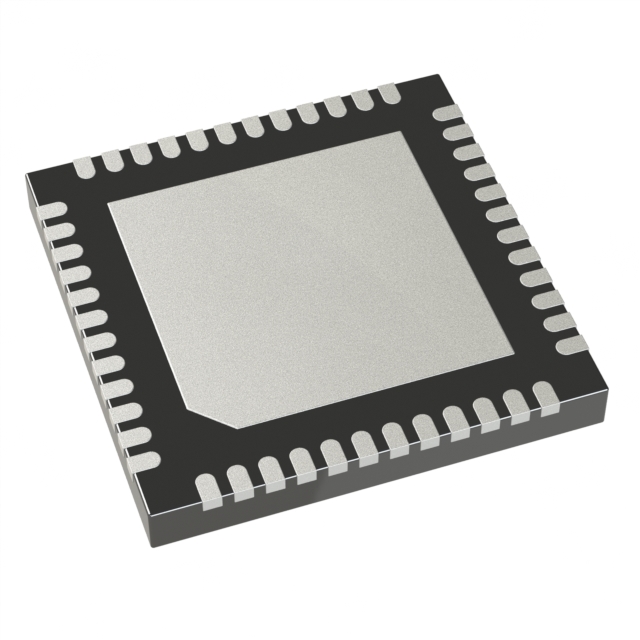

For picture reference, please see the specifications
< >

Commodity Model:5P49V6968A154NDGI

Trade Name:Clock Generator

Brand:Renesas

Particular Year:25+

Package:48-VFQFPN

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
5P49V6968A154NDGI
Package
48-VFQFPN
Describe
VersaClock 6E Programmable Clock Generator

Product Description

The 5P49V6968A154NDGI generator is a programmable clock generator of the VersaClock 6E series launched by (Renesas), supporting a frequency range of 1 kHz to 350 MHz and featuring a 48-VFQFPN package. The 5P49V6968A154NDGI is mainly used for clock and timer development, achieving flexible clock signal generation through evaluation tools such as EVK.


Main functional features

Flexible 1.8V, 2.5V and 3.3V power rails

High-performance, low phase noise PLL, with typical phase jitter at the output terminal less than 0.5ps RMS

Four sets of internal OTP memory

Programmable within the system or in the factory

I2C serial programming interface

The 0xD0 or 0xD4 I2C address option allows multiple devices to be configured in the same system

Refer to the LVCMOS output clock

Three universal configurable outputs (OUT1, 2,4):

Differential (LVPECL, LVDS or HCSL) 1kHz to 350MHz

Two single-ended (in phase or 180 degrees out of phase)1kHz to 200MHz

I/O vdd can be mixed and matched, supporting 1.8V(LVDS and LVCMOS), 2.5V or 3.3V

Independent spread spectrum on each output pair

Eight additional LPHCSL outputs (outputs 3,5-11)

1.8V low power supply

1kHz to 200MHz

Programmable output enable or power-off mode

Redundant clock input with manual switching

Available in 6 × 6mm 48-VFQFPN package

Operating at industrial temperatures ranging from -40 to +85℃


Typical applications

Ethernet switch/router

PCI Express 1.0/2.0/3.0/4.0 spread spectrum enabled

PCI Express 1.0/2.0/3.0/4.0/5.0 spread spectrum is turned off

Broadcast video/audio timing

Multifunctional printer

Processor and FPGA clock

Arbitrary frequency clock conversion

MSAN/DSLAM/PON

Fiber Channel, SAN

Telecommunication line card

Data center


Associated Products

Model

Brand

Package

Quantity

Describe

8T49N028-032NLGI

Renesas

48-VFQFN

2000

Crystal to 3.3V, 2.5V multi-frequency clock generator with fan-out buffer

8T49N012NLGI

Renesas

VFQFN-56

2000

FemtoClock NG 3.3V, 2.5V LVPECL/LVCMOS clock generators

8T49N008A-038NLGI

Renesas

40-VFQFN

2000

Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 8-Outputs

5L1503S-000NVGI

Renesas

10-VFQFPN

2000

MicroClock Programmable Clock Generator

5L1503L-000NVGI

Renesas

10-VFQFPN

2000

MicroClock Programmable Clock Generator

5L1503-000NVGI

Renesas

10-VFQFPN

2000

MicroClock Programmable Clock Generator

5L35021B-000NDGI

Renesas

20-QFN

2000

VersaClock 3S Programmable Clock Generator

5P35021B-000NDGI

Renesas

20-VFQFPN

2000

VersaClock 3S Programmable Clock Generator

5P35021-000NDG2

Renesas

24-VFQFPN

2000

VersaClock 3S Programmable Clock Generator

5P35023-000NLG2

Renesas

VFQFPN-24

2000

VersaClock 3S Programmable Clock Generator
