Trade Name:Clock Generator
Brand:Renesas
Particular Year:25+

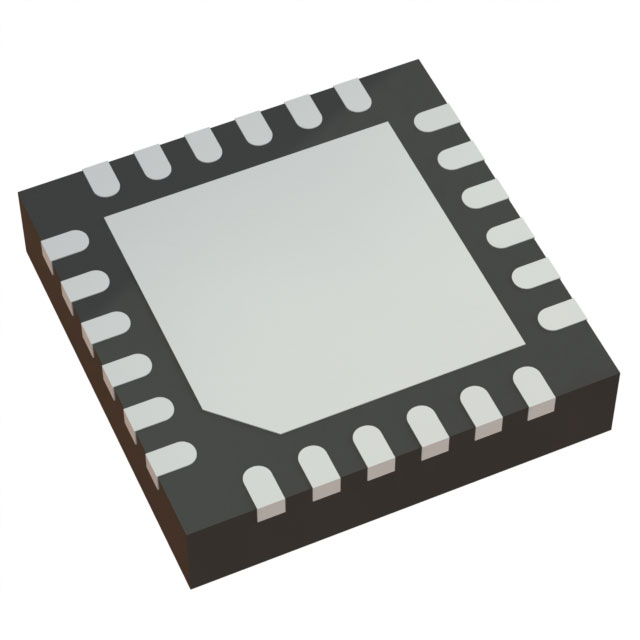

Package:24-VFQFPN
Delivery Date:New and original
Stock: 2000pcs
The 5P35021-000NDG2 is a VersaClock programmable clock generator launched by (Renesas), specifically designed for low-power, consumer electronics and high-performance PCI Express applications. The 5P35021-000NDG2 features the following key functions:
Configurable OE pin functions, such as OE, PD#, PPS or DFC control functions
Configurable PLL bandwidth; Minimize jitter peak
PPS: The active power-saving function can save power when the terminal device is powered off
PPB: The performance-power balance function can achieve the lowest power consumption based on the required performance
DFC: The dynamic frequency control function enables users to smoothly and dynamically switch between up to four different frequencies
The two PLLS support independent spread spectrum clocks to reduce electromagnetic interference in the system
Store the user configuration in the OTP memory
I2C interface
The 5P35021-000NDG2 device adopts a three-PLL architecture design. Each PLL can be programmed independently and supports up to five different frequency outputs. The 5P35021-000NDG2 features built-in unique functions such as Active Energy Saving (PPS), Performance-to-Power Balance (PPB), Overshoot Reduction technology (ORT), and ultra-Low Power Consumption (DCO). The internal OTP memory enables users to store the configuration in the device without programming after power-on, and then reprogram the 5P35021 through the I2C interface.
Application field
▪ PCIe GEN1-3 clock generator
▪ Crystal alternatives for consumer applications
▪ SmartDevice, handheld
▪ Computing and consumer applications
▪ Automotive applications (infotainment, dashboard, camera/vision, computing, networking)
