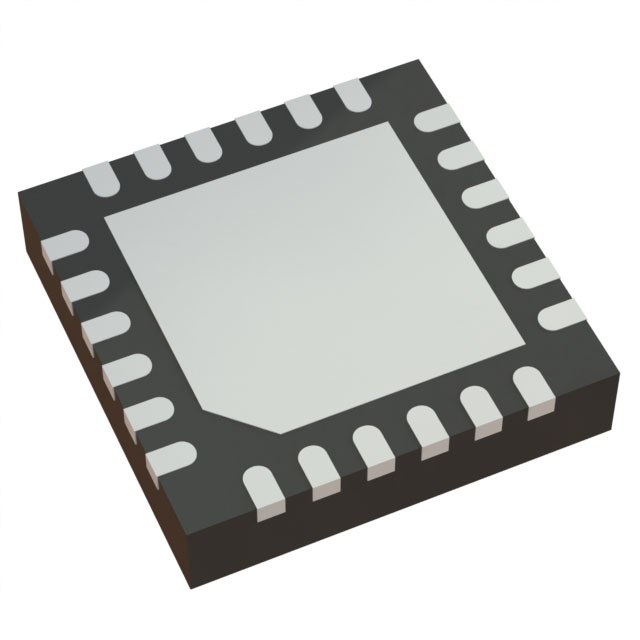

For picture reference, please see the specifications
< >

Commodity Model:5P35023-000NLG2

Trade Name:Clock Generator

Brand:Renesas

Particular Year:25+

Package:VFQFPN-24

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
5P35023-000NLG2
Package
VFQFPN-24
Describe
VersaClock 3S Programmable Clock Generator

Product Description

The 5P35023-000NLG2 is a VersaClock programmable clock generator, specifically designed for low-power, consumer electronics and high-performance PCI Express applications. It has the following main characteristics:

The configurable OE pin function serves as an OE, PD#, PPS or DFC control function

Configurable PLL bandwidth/minimize jitter peaking

PPS: The active power-saving function can save power when the terminal device is powered off

PPB: The performance-power balance function can achieve the lowest power consumption based on the required performance

DFC: The dynamic frequency control function allows for dynamic switching of up to four different frequencies

Spread spectrum clocks support the reduction of electromagnetic interference in the system

I2C interface

Supports crystal oscillator input


The 5P35023-000NLG2 device adopts a three-PLL architecture design. Each PLL can be programmed independently and supports up to five different frequency outputs. The 5P35023-000NLG2 features built-in unique functions such as Active Energy Saving (PPS), Performance-to-Power Balance (PPB), Overshoot Reduction technology (ORT), and ultra-Low Power Consumption (DCO). The internal OTP memory enables users to store the configuration in the device without programming after power-on, and then reprogram the 5P35023 through the I2C interface.


Typical applications

▪ PCIe GEN1-3 clock generator

▪ Crystal alternatives for consumer applications

▪ SmartDevice, handheld

▪ Computing and consumer applications

▪ Automotive applications (infotainment, dashboard, camera/vision, computing, networking)
