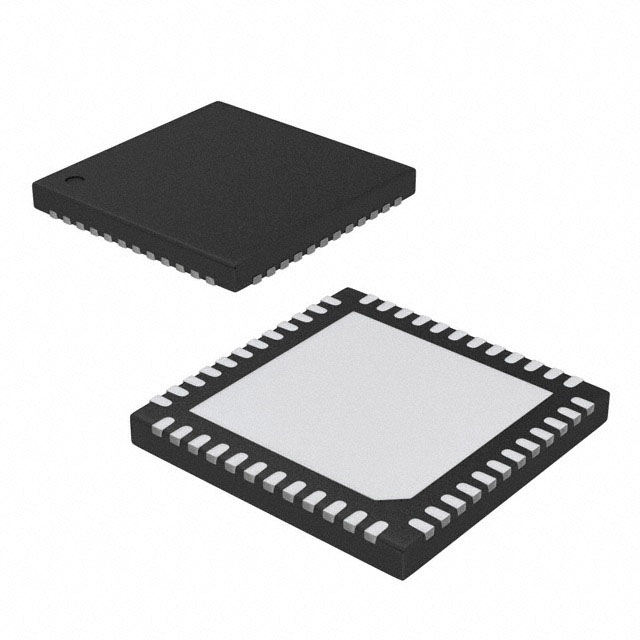

For picture reference, please see the specifications
< >

Commodity Model:RC32508A000GNE

Trade Name:Clock Generator

Brand:Renesas

Particular Year:25+

Package:48-VFQFPN

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
RC32508A000GNE
Package
48-VFQFPN
Describe
FemtoClock 2 jitter attenuator and clock generator

Product Description

The RC32508A000GNE can regenerate and distribute ultra-low jitter clock outputs and features up to two independent frequency domains, which can be locked to an external reference clock or to a freely operating crystal or oscillator. Digital PLL (DPLL) supports uninterrupted reference switching between references from redundant timing sources.


The RC32508A000GNE supports multiple independent timing channels for clock generation and jitter attenuation of high-speed serial links. Phase offsets from input to input, input to output, and output to output can all be precisely managed. This device outputs an ultra-low jitter clock and can directly synchronize SerDes operating at a speed of up to 112Gbps. And CPRI/OBSAI, SONET/SDH ADC/DAC.


Main features

It can be configured as a clock generator or a jitter attenuator/synchronizer

Low power consumption, with a typical value less than 0.8W

Low jitter, less than 50 fs-Rms

It complies with options 1 and 2 of ITU-T G.8262 and G.8262.1, and is suitable for synchronous Ethernet device clocks (EEC/eEEC) without reducing output jitter

Jitter attenuation, the programmable loop bandwidth range is from 0.1Hz to 12kHz

Up to 2 independent frequency domains and 8 integer output dividers

Each frequency domain can be controlled by DPLL or operate freely

DPLL can be configured as DCO

The programmable output swing supports LVCMOS, AC-LVPECL, AC-LVDS, HCSL and AC-CML output modes

Up to 2 single-ended or 1 differential clock input, 1 crystal oscillator /XO/TCXO/OCXO input

Supports 1MHz I C, 400kHz SMBus or 50MHz SPI serial ports

The internal non-volatile memory (up to 8 different configurations) provides default device Settings upon power-on.

1.8V core and output operations

Operating at industrial temperatures ranging from -40°C to +85°C


Application field

The RC32508A000GNE is highly suitable for 100G/200G/400G/800G telecommunications switching line cards, switching matrix cards and OTN applications.


Associated Products

Model

Brand

Package

Quantity

Describe

5P49V5913A504NLGI

Renesas

24-VFQFPN

2000

VersaClock 5 Low Power Programmable Clock Generator

5P49V6901A590NLGI

Renesas

24-VFQFPN

2000

VersaClock 6 Low Power Programmable Clock Generator

5P49V60B000NLG2

Renesas

24-VFQFPN

2000

VersaClock 6E programmable clock generator for automobiles

RC21005BQ01GL2

Renesas

32-LGA

2000

VersaClock 7 Programmable Clock Generator

RC21005BQ00GL2

Renesas

32-LGA

2000

VersaClock 7 Programmable Clock Generator

5P49V6967A000NDGI

Renesas

VFQFPN-40

2000

VersaClock 6E Programmable Clock Generator with 4 Additional Output Copies

RC21214A000GND

Renesas

VFQFN-40

2000

AutoClock automotive-grade programmable clock generator

RC21213A000GND

Renesas

VFQFN-40

2000

AutoClock automotive-grade programmable clock generator

LMK3H0102V33RERR

TI

TQFN-16

3000

PCIe 1st to 7th generation compatible no-reference clock generators based on (BAW)

LMK3H0102V18RERR

TI

TQFN-16

3000

PCIe 1st to 7th generation compatible no-reference clock generators based on (BAW)
